087831 Series

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, Shrouded, 18 Circuits, 0.38µm Gold (Au) Plating, with Center Polarization Slot, with Locking Window, with PCB Locator, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, Shrouded, 18 Circuits, 0.38µm Gold (Au) Plating, with Center Polarization Slot, with Locking Window, with PCB Locator, Tube

Part	Connector Type	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Termination	Number of Rows	Contact Finish - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Features	Insulation Color	Material Flammability Rating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Shrouding	Number of Positions Loaded	Insulation Material	Applications	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Style	Contact Type
Molex 0878315021	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	50	105 ░C	-55 °C	Phosphor Bronze	30 Áin	0.76 Ám	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin

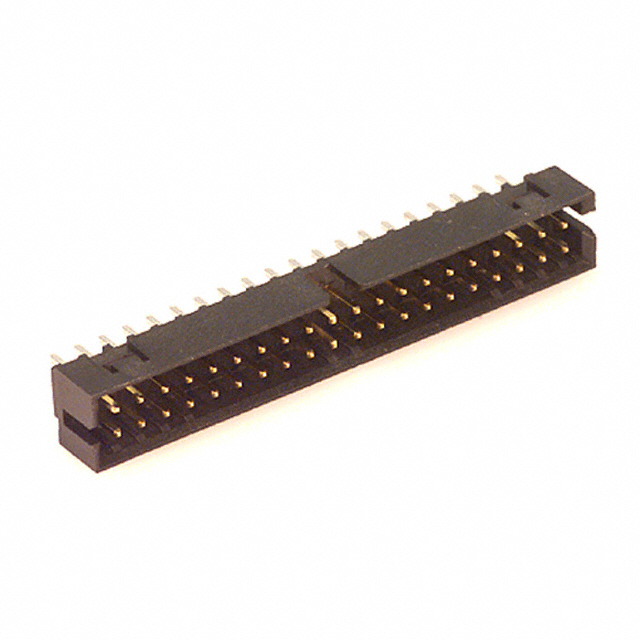

Molex 0878314020	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	40	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin

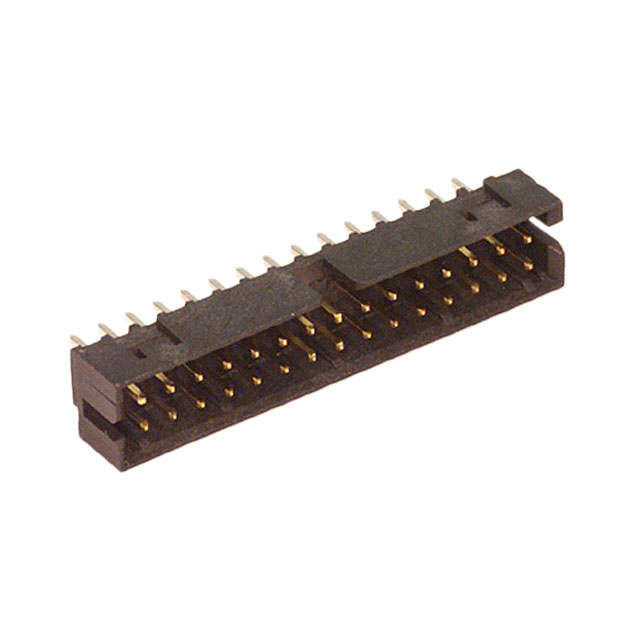

Molex 0878313020	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	30	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin

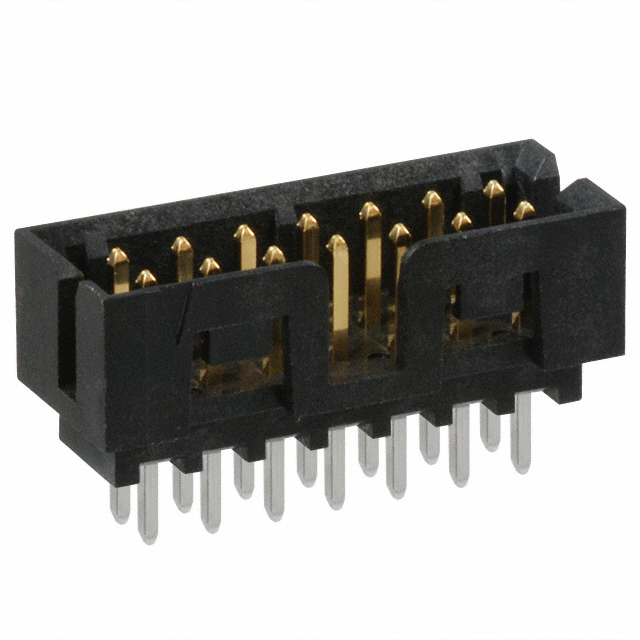

Molex 0878311420	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	14	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878312221	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	22 positions	105 ░C	-55 °C	Phosphor Bronze	30 Áin	0.76 Ám	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878314620	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	46	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878311821	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	18	105 ░C	-55 °C	Phosphor Bronze	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878314421	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	44	105 ░C	-55 °C	Phosphor Bronze	30 Áin	0.76 Ám	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878311241	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	12	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm		Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 4 Wall	All	Glass Filled Nylon Polyamide (PA)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
Molex 0878314431	Header	Through Hole	6.4 mm	0.252 in	74.8 Áin	1.9 Ám	Square	Solder	2	Gold	44	105 ░C	-55 °C	Phosphor Bronze	15 µin	0.38 µm	Latch Holder	0.079 in	2 mm	Keying Slot	Black	UL94 V-0	2 A	2.5 mm	0.098 in	Tin	Shrouded - 2 Wall	All	Glass Filled Nylon 4/6 Polyamide (PA46)	Automotive General Purpose Telecommunications	0.079 in	2 mm	0.141 in	3.6 mm	125 VDC	Board to Board Cable	Male Pin
