Q48SK Series

Catalog

DC DC CONVERTER 12V 400W

Part	Voltage - Isolation	Package / Case	Efficiency	Current - Output (Max) [Max]	Features	Type	Applications	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics Q48SK12033NRFH	2250 VDC	6-DIP Module 1/4 Brick	95.5 %	33 A	OCP OTP OVP Remote On/Off UVLO	Isolated Module	ITE (Commercial)	1	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Active Low Enable	36 V	75 V	108 °C	-40 C	12 V	400 W
Delta Electronics Q48SK12033NRFA	2250 VDC	6-DIP Module 1/4 Brick	95.5 %	33 A	OCP OTP OVP Remote On/Off UVLO	Isolated Module	ITE (Commercial)	1	Through Hole	57.9 mm	1.45 in	0.43 in	2.28 "			Active Low Enable	36 V	75 V	117 °C	-40 C	12 V	400 W	36.8 mm	10.9 mm

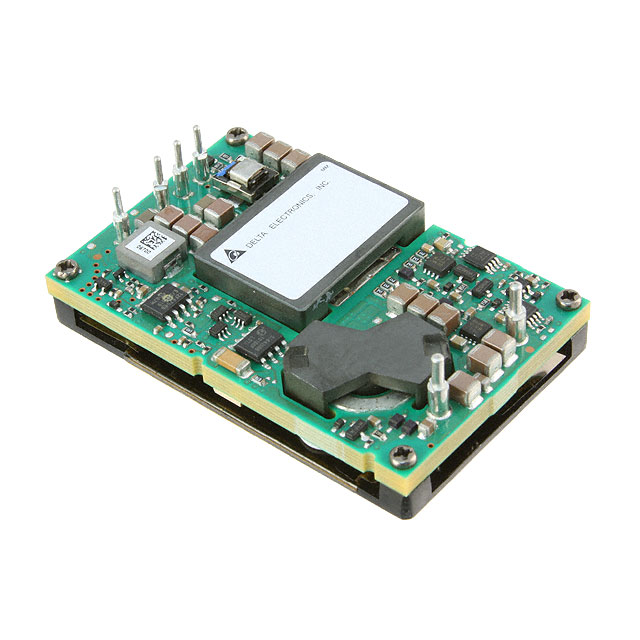

Delta Electronics Q48SK12025NRFA	2250 VDC	6-DIP Module 1/4 Brick	95.2 %	25 A	OCP OTP OVP Remote On/Off UVLO	Isolated Module	ITE (Commercial)	1	Through Hole	57.9 mm	1.45 in	0.43 in	2.28 "			Active Low Enable	36 V	75 V	118 °C	-40 C	12 V	300 W	36.8 mm	10.9 mm
