CMDA20 Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K

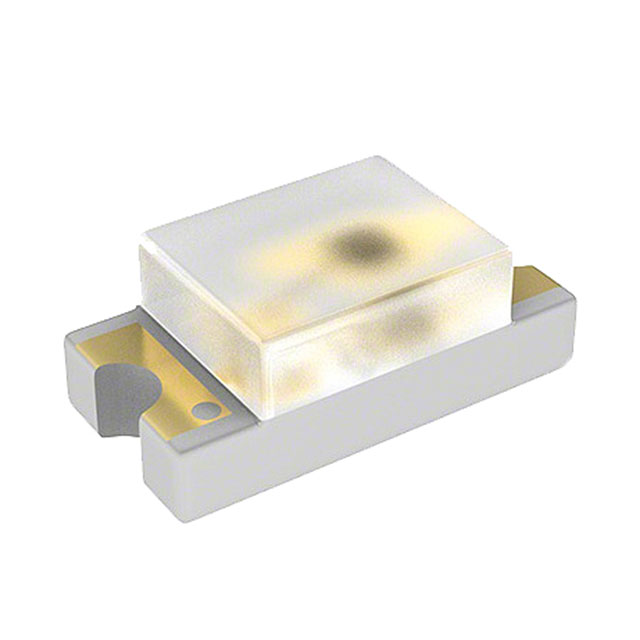

LED AMBER/GREEN DIFF 0603 SMD
| Part | Millicandela Rating | Color | Height (Max) [z] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Lens Style | Current - Test | Package / Case | Package / Case | Viewing Angle | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Lens Color | Lens Transparency | Lens Size [y] | Lens Size [x] | Configuration | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | 8 mcd 15 mcd | Amber Green | 0.5 mm | 570 nm | 605 nm | Rectangle with Flat Top | 20 mA 20 mA | 1608 Metric | 0603 | 120 ° | 2.2V Amber 2.2V Green | 1.6 mm | 0.8 mm | White | Diffused | 0.8 mm | 1.6 mm | Independent | Surface Mount |
