Barrier Terminal Blocks Single Row 7 Pole MAGNUM 2000 SERIES
Barrier Terminal Blocks Single Row 7 Pole MAGNUM 2000 SERIES
| Part | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Contact Material | Insulation | Terminal Type | Wire Gauge | Mounting Type | Thickness | Thickness | Termination | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish | Width - Outer Edges | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

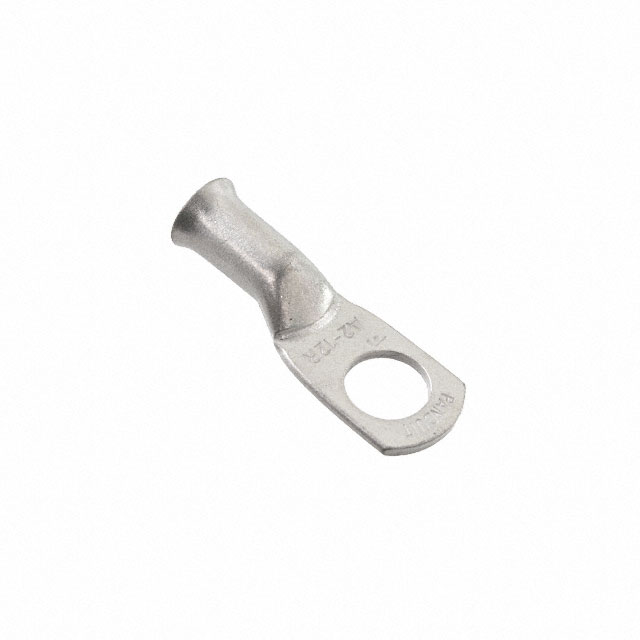

 Panduit Corp | 0.5 Stud | 2.16 in | 54.86 mm | Copper | Non-Insulated | Circular Tubular (Battery Lugs) | 2 AWG | Free Hanging (In-Line) | 0.08 in | 2.03 mm | Crimp | 19.05 mm | 0.75 in | Electro-Tin | ||
Panduit Corp | 0.25 Stud | 1.84 in | 46.74 mm | Copper | Non-Insulated | Circular Tubular (Battery Lugs) | 2 AWG | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Crimp | 0.6 " | Electro-Tin | 15.24 mm | ||
Panduit Corp | 0.3125 Stud | 1.89 in | 48 mm | Copper | Non-Insulated | Circular Tubular (Battery Lugs) | 2 AWG | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Crimp | Electro-Tin | 16.76 mm | 0.66 in | ||
Panduit Corp | 0.375 Stud | 1.93 in | 49.02 mm | Copper | Non-Insulated | Circular Tubular (Battery Lugs) | 2 AWG | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Crimp | Electro-Tin | 16.76 mm | 0.66 in |
