ASJ-181 Series
Manufacturer: Adam Tech
Beta
⌘K

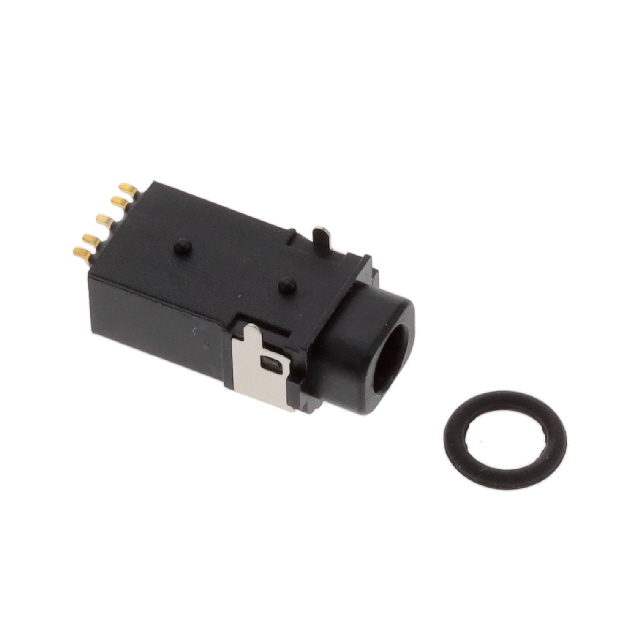

AUDIO JACK, WATERPROOF
| Part | Contact Material - Plating | Voltage - Rated | Housing Material | Body Color | Contact Material | Current Rating (Amps) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Insulation Color | Termination | Signal Lines | Gender | Mounting Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Gold | 12 VDC | Thermoplastic | Black | Copper Alloy | 1 A | 5 | 4 | 85 °C | -25 °C | Board Guide IP67 | Shielded | 0.142 in | 3.6 mm | Phone Jack | Black | Solder | Stereo (4 Conductor TRRS) | Female | Right Angle Surface Mount | 0.125 in | 3.5 mm | 0.141 in |
