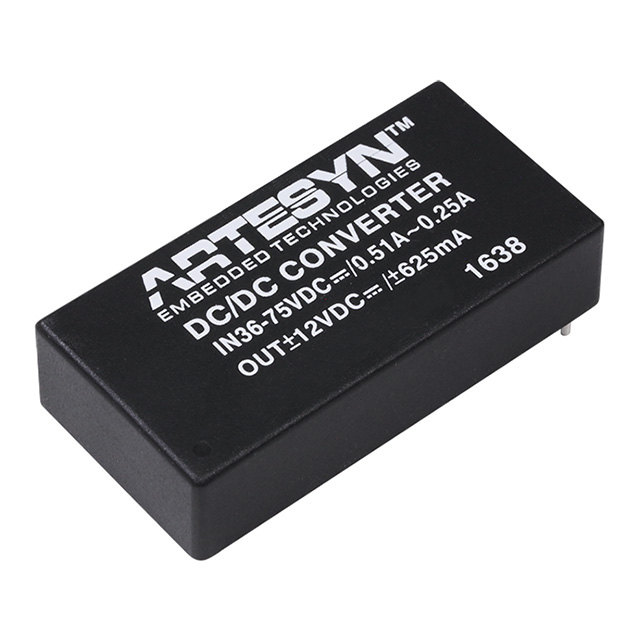

AEE01B Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 12V 15W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Features | Voltage - Isolation | Applications | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 80 ¯C | -40 °C | 18 V | Isolated Module | 12 V | OCP OVP SCP | 4.2 kV | ITE (Commercial) Medical | 15 W | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm | 89 % | 1 | 5-DIP Module 4 Leads | 1.25 A | Through Hole | 36 V |
 ARTESYN / Advanced Energy | 80 ¯C | -40 °C | 36 V | Isolated Module | 12 V | OCP OVP SCP | 4.2 kV | ITE (Commercial) Medical | 15 W | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm | 88 % | 1 | 5-DIP Module 4 Leads | 1.25 A | Through Hole | 75 V |
ARTESYN / Advanced Energy | 80 ¯C | -40 °C | 9 V | Isolated Module | 12 V | OCP OVP SCP | 4.2 kV | ITE (Commercial) Medical | 15 W | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm | 89 % | 1 | 5-DIP Module 4 Leads | 1.25 A | Through Hole | 18 V |
