OSTTS06 Series

Catalog

TERM BLOCK PLUG 6POS 270DEG 5MM

Part	Contact Material	Torque - Screw	Torque - Screw	Material Flammability Rating	Housing Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Pitch	Pitch	Termination Style	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTS06715B	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.197 in	5 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06715D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.197 in	5 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06515C	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06715C	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.197 in	5 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V

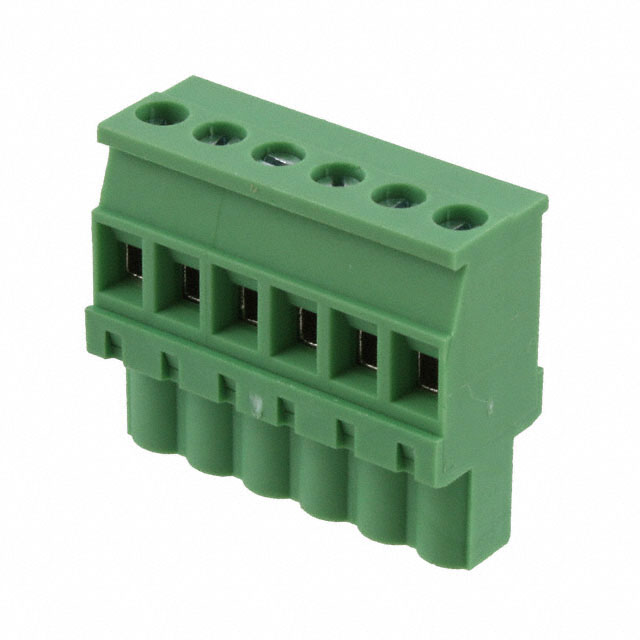

On Shore Technology Inc. OSTTS06515B	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V	0.34 mm˛	2.5 mm˛
On Shore Technology Inc. OSTTS06715A	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.197 in	5 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V	0.34 mm˛	2.5 mm˛
On Shore Technology Inc. OSTTS06515D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6	Green	-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06015A	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1			0.3 in	7.62 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6		-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06A15D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	1			0.295 in	7.5 mm	Screw	Plug Female Sockets	12 AWG	24 AWG	Free Hanging (In-Line)	6		-30 ░C	105 ░C	6	300 V
On Shore Technology Inc. OSTTS06115D	Brass	1.7 Lb-In	0.2 Nm	UL94 V-0	Brass	7 mm	6 mm	1			0.138 "	3.5 mm	Screw	Plug Female Sockets	16 AWG	28 AWG	Free Hanging (In-Line)	6	Green	-40 C	115 °C	6	300 V			1.5 mm²
