DAC3162 Series
Manufacturer: Texas Instruments
Beta
⌘K

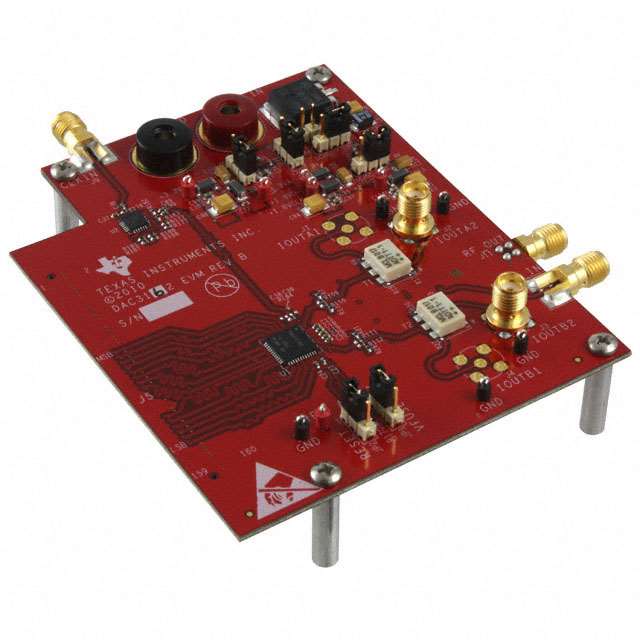

EVAL MODULE FOR DAC3162
| Part | Supplied Contents | Utilized IC / Part | Sampling Rate (Per Second) | Data Interface | Settling Time | Number of Bits | Number of DAC's | DAC Type | Mounting Type | Reference Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Architecture | Differential Output | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Output Type | Supplier Device Package | Package / Case | INL/DNL (LSB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | DAC3162 | 500 M | CMOS LVDS Parallel | 10 ns | 12 bits | 2 | Current | ||||||||||||||
 Texas Instruments | LVDS - Parallel | 10 ns | 12 bits | Surface Mount | Internal | 3.6 V | 3 V | 85 °C | -40 °C | Current Sink | 1.7 V | 1.9 V | Current - Unbuffered | 48-VQFN (7x7) | 48-VFQFN Exposed Pad | ±0.4 ±0.5 |
