16SEPF Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM POLY 180UF 20% 16V TH

Part	Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Ripple Current @ Low Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]

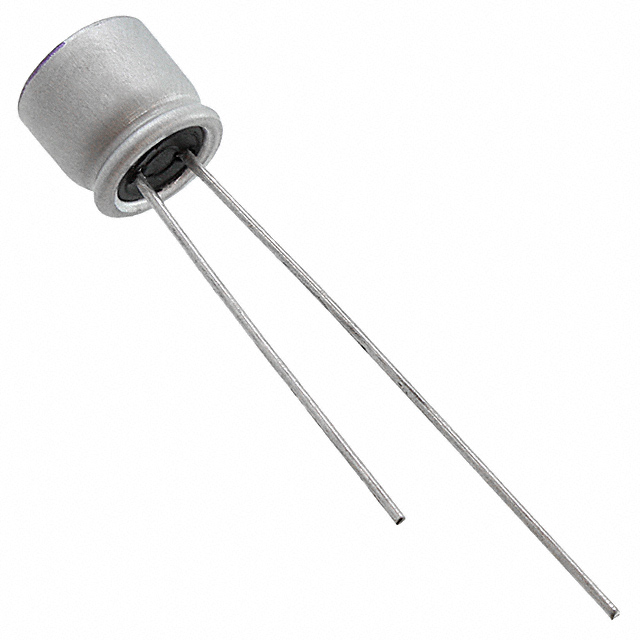

Panasonic Electronic Components 16SEPF180M+TSS	Polymer	22 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	165 mA	6 mm	0.236 "	3.3 A	0.248 "	6.3 mm	20 %	16 V	2.5 mm	0.098 in	180 µF	Through Hole	Can Radial

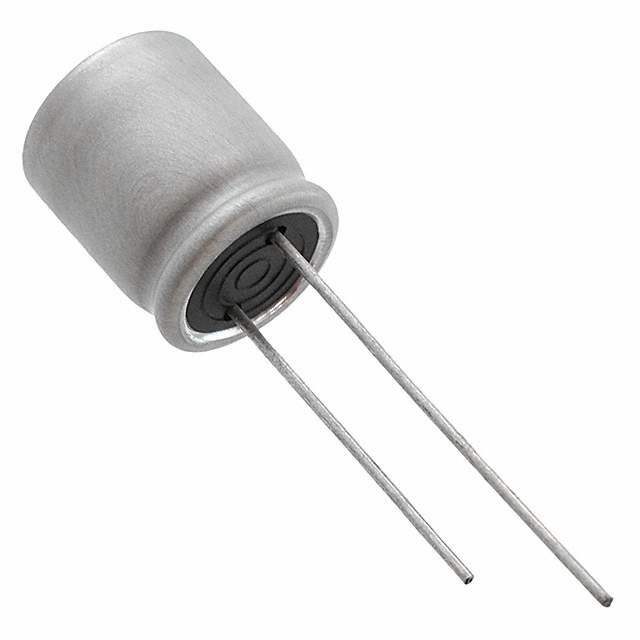

Panasonic Electronic Components 16SEPF1000M+T	Polymer	12 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	270 mA			5.4 A	0.394 in	10 mm	20 %	16 V	5 mm	0.197 "	1000 µF	Through Hole	Can Radial	0.512 "	13 mm
Panasonic Electronic Components 16SEPF270M+TSS	Polymer	22 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	165 mA		0.276 in	3.3 A	0.315 in	8 mm	20 %	16 V	3.5 mm	0.138 in	270 µF	Through Hole	Can Radial			7 mm

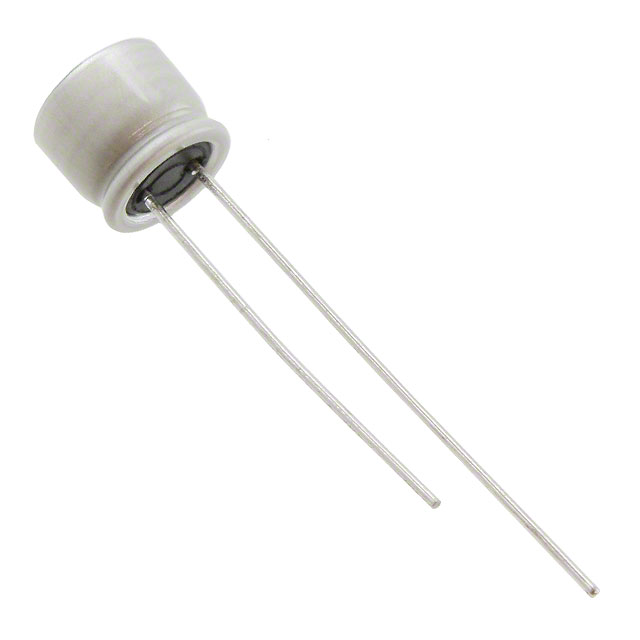

Panasonic Electronic Components 16SEPF150M+TSS	Polymer	30 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	129.5 mA		0.217 "	2.59 A	0.248 "	6.3 mm	20 %	16 V	2.5 mm	0.098 in	150 µF	Through Hole	Can Radial			5.5 mm
Panasonic Electronic Components 16SEPF180M	Polymer	22 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	165 mA	6 mm	0.236 "	3.3 A	0.248 "	6.3 mm	20 %	16 V	2.5 mm	0.098 in	180 µF	Through Hole	Can Radial
Panasonic Electronic Components 16SEPF270M	Polymer	22 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	165 mA		0.276 in	3.3 A	0.315 in	8 mm	20 %	16 V	3.5 mm	0.138 in	270 µF	Through Hole	Can Radial			7 mm
Panasonic Electronic Components 16SEPF1000M	Polymer	12 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	270 mA			5.4 A	0.394 in	10 mm	20 %	16 V	5 mm	0.197 "	1000 µF	Through Hole	Can Radial	0.512 "	13 mm
Panasonic Electronic Components 16SEPF150M	Polymer	30 mOhms	5000 Hrs	-55 C	105 ░C	General Purpose	129.5 mA		0.217 "	2.59 A	0.248 "	6.3 mm	20 %	16 V	2.5 mm	0.098 in	150 µF	Through Hole	Can Radial			5.5 mm
