BD42754FPJ-C Series

500mA 5V Output LDO Regulator with Voltage Detector for Automotive

Catalog

500mA 5V Output LDO Regulator with Voltage Detector for Automotive

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Output Type	Supplier Device Package	Output Configuration	Number of Regulators	PSRR	Current - Quiescent (Iq)	Package / Case	Current - Output	Grade	Voltage - Output (Min/Fixed)	Protection Features	Qualification	Mounting Type	Voltage Dropout (Max) [Max]

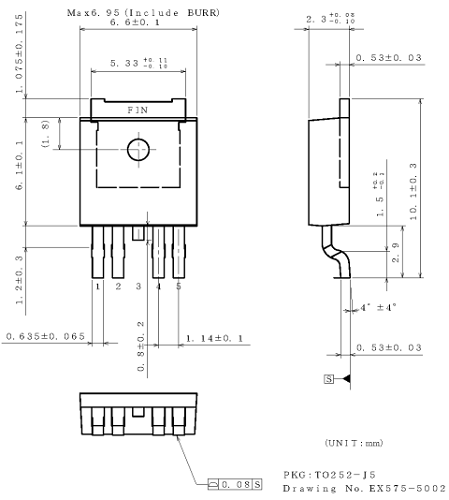

Rohm Semiconductor BD42754FPJ-CE2	125 °C	-40 °C	45 V	1.81 mOhm	TO-252-J5F	Positive	1	60 dB	150 çA	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	500 mA	Automotive	5 V	Over Current Over Temperature	AEC-Q100	Surface Mount	0.5 V

Catalog

500mA 5V Output LDO Regulator with Voltage Detector for Automotive

Key Features

• Low ESR Ceramic Capacitors Applicable for Output., Low Drop Voltage: PDMOS Output Transistor, Power On and Under-Voltage Reset, Programmable Reset Time by External Capacitor.

Description

BD42754FPJ-C is a voltage regulator featuring 45V absolute maximum voltage with 1ch Reset and offers the output current of 500 mA while limiting the low quiescent current. This regulator is therefore ideal for applications requiring a direct connection to the battery and a low current consumption. A reset signal is generated for an output voltage VO of Typ 4.62V. The reset delay time can be programmed by the external capacitor.
