D443 Series

Catalog

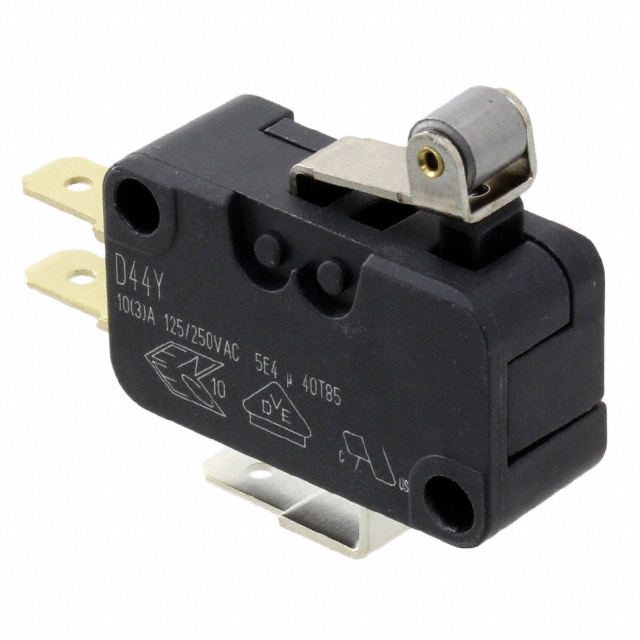

SWITCH SNAP ACTION SPDT 10A 250V

Part	Actuator Type	Mounting Type	Features	Switch Function	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Operating Position	Operating Position	Release Force	Circuit	Pretravel	Pretravel	Electrical Life	Voltage Rating - AC	Termination Style	Operating Force	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel
ZF Electronics D443-R1AA-G2	Round (Pin Plunger)	Chassis Mount	Explosion Proof	On-Mom	0.051 "	1.3 mm	10 A	14.7 mm	0.579 in	102 gf	SPDT	1.2 mm	0.047 in	50000 Cycles	250 V	Quick Connect	291 gf	0.012 in	0.3 mm	85 °C	-40 C
ZF Electronics D443-R1RD	Lever Roller	Chassis Mount	Explosion Proof	On-Mom	0.087 "	2.2 mm	10 A	20.5 mm	0.806 in	41 gf	SPDT	3.2 mm	0.125 in	50000 Cycles	250 V	Quick Connect	147 gf	0.031 in	0.8 mm	85 °C	-40 C
ZF Electronics D443-R1MD-G2	Lever Straight	Chassis Mount	Explosion Proof	On-Mom	0.141 "	3.6 mm	10 A	15.2 mm	0.6 in	25 gf	SPDT	5.1 mm	0.2 in	50000 Cycles	250 V	Quick Connect	88 gf		0.05 in	85 °C	-40 C	1.3 mm
ZF Electronics D443-R1LD-G2	Lever Straight	Chassis Mount	Explosion Proof	On-Mom	0.09 "	2.3 mm	10 A	15.2 mm	0.6 in	41 gf	SPDT	3.2 mm	0.125 in	50000 Cycles	250 V	Quick Connect	147 gf	0.031 in	0.8 mm	85 °C	-40 C
