S3B-ZR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 3POS 1.5MM
| Part | Shrouding | Mounting Type | Insulation Height | Insulation Height | Number of Positions Loaded | Fastening Type | Termination | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Contact Type | Voltage Rating | Features | Insulation Material | Contact Finish - Post | Connector Type | Number of Rows | Insulation Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

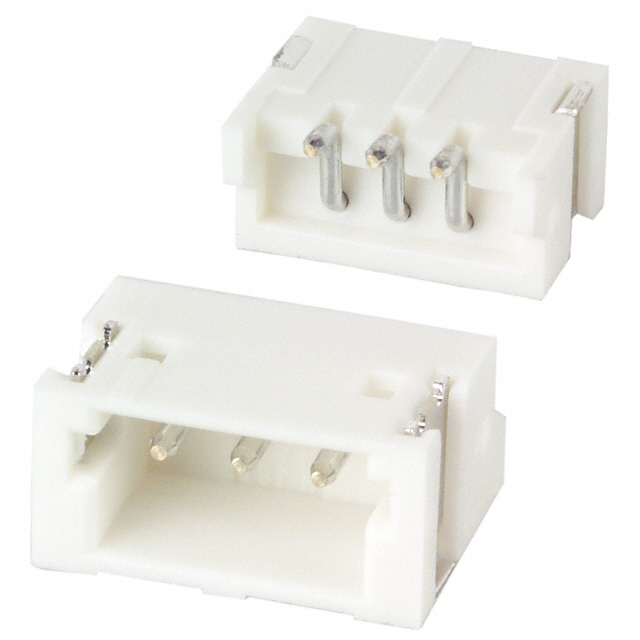

 JST Sales America Inc. | Shrouded - 4 Wall | Right Angle Surface Mount | 3.7 mm | 0.146 in | All | Detent Lock | Solder | 2.4 mm | 0.094 in | UL94 V-0 | Male Pin | 50 V | Board Guide | Glass Filled Nylon 4/6 Polyamide (PA46) | Tin | Header | 1 | Natural | Brass | 85 °C | -25 °C | Board to Cable/Wire | Circular | |||

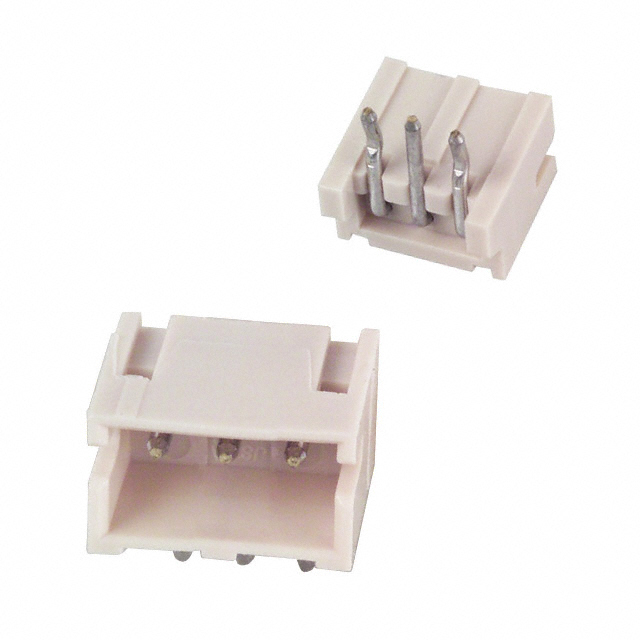

 JST Sales America Inc. | Shrouded - 4 Wall | Right Angle Through Hole | 3.7 mm | 0.146 in | All | Detent Lock | Solder | 2.4 mm | 0.094 in | UL94 V-0 | Male Pin | 50 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Header | 1 | Natural | Brass | 85 °C | -25 °C | Board to Cable/Wire | Circular | 0.106 in | 2.69 mm | ||
 JST Sales America Inc. | Shrouded - 4 Wall | Right Angle Through Hole | 3.7 mm | 0.146 in | All | Detent Lock | Solder | UL94 V-0 | Male Pin | 50 V | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | Header | 1 | Natural | Brass | 85 °C | -25 °C | Board to Cable/Wire | Circular | 0.134 " | 3.4 mm | ||||
 JST Sales America Inc. | Shrouded - 4 Wall | Right Angle Surface Mount | 3.7 mm | 0.146 in | All | Detent Lock | Solder | UL94 V-0 | Male Pin | 50 V | Solder Retention | Nylon 6T Polyamide (PA6T) | Tin | Header | 1 | Natural | Brass | 85 °C | -25 °C | Board to Cable/Wire | Circular |
