V8D2UHNB Series

Catalog

SWITCH ROCKER SPDT 20A 12V

Part	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Circuit	Switch Function	Mechanical Life	Color - Actuator/Cap	Termination Style	Mounting Type	Approval Agency	Electrical Life	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
Carling Technologies V8D2UHNB-AACNM-100	Amber/Green LED	Master Light - High Beam Vertical	12 V	SPDT	Mom-Off-Mom	100000 Cycles	Black	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	CSA UL VDE	100000 Cycles	IP66/IP68	21.08 mm	36.83 mm	12 VDC	20 A	85 °C	-40 °C	Convex (Reverse V) - Illuminated
Carling Technologies V8D2UHNB-AAS00-000	Amber/Green LED	No Marking	12 V	SPDT	Mom-Off-Mom	100000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	CSA UL VDE	100000 Cycles	IP66/IP68	21.08 mm	36.83 mm	12 VDC	20 A	85 °C	-40 °C	Convex (Reverse V) - Illuminated

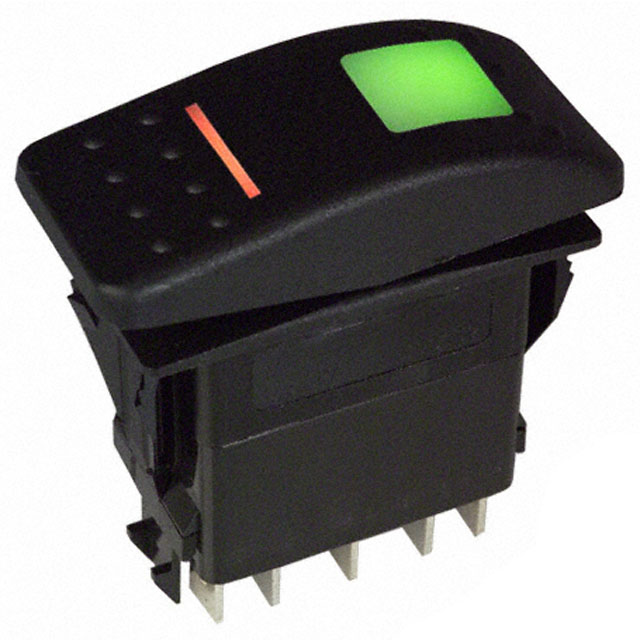

Carling Technologies V8D2UHNB-AAC00-000	Amber/Green LED	No Marking	12 V	SPDT	Mom-Off-Mom	100000 Cycles	Black	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	CSA UL VDE	100000 Cycles	IP66/IP68	21.08 mm	36.83 mm	12 VDC	20 A	85 °C	-40 °C	Convex (Reverse V) - Illuminated
