MCR908 Series

Catalog

IC MCU 8BIT 4KB FLASH 20DIP

Part	Program Memory Type	Peripherals	Supplier Device Package	Oscillator Type	Core Size	Speed	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Mounting Type	Number of I/O	Program Memory Size	Data Converters [custom]	Data Converters [custom]	Package / Case	Package / Case	Package / Case	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case [y]	Package / Case [x]
Freescale Semiconductor - NXP MCR908JK3ECPE	FLASH	LED LVD POR PWM	20-DIP	External	8-Bit	8 MHz	2.7 V	3.3 V	128 x 8	Through Hole	15	4 KB	8	12	20-DIP	7.62 mm	0.3 in	HC08	85 °C	-40 °C

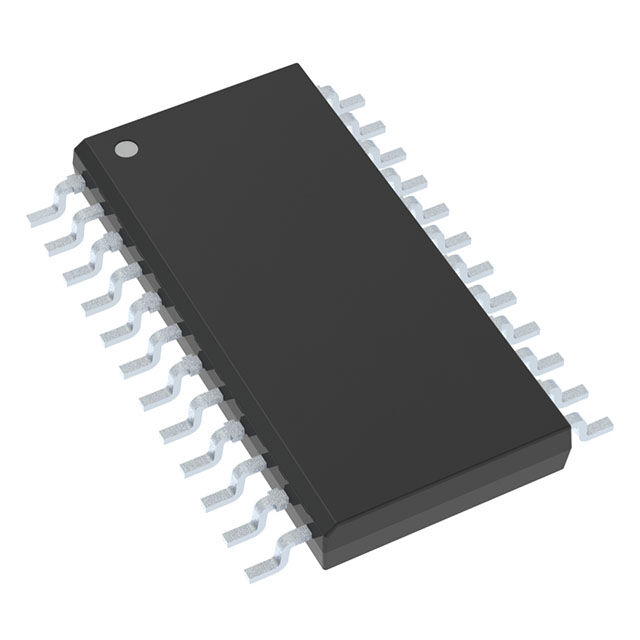

Freescale Semiconductor - NXP MCR908JK1ECDWER	FLASH	LED LVD POR PWM	20-SOIC	External	8-Bit	8 MHz	2.7 V	3.3 V	128 x 8	Surface Mount	14	1.5 KB	8	12	20-SOIC			HC08	85 °C	-40 °C	0.295 in	7.5 mm
Freescale Semiconductor - NXP MCR908JL3ECDWE	FLASH	LED LVD POR PWM	28-SOIC	External	8-Bit	8 MHz	2.7 V	3.3 V	128 x 8	Surface Mount	23	4 KB	8	12	28-SOIC			HC08	85 °C	-40 °C	7.5 mm		0.295 in
Freescale Semiconductor - NXP MCR908JK1ECDWE	FLASH	LED LVD POR PWM	20-SOIC	External	8-Bit	8 MHz	2.7 V	3.3 V	128 x 8	Surface Mount	14	1.5 KB	8	12	20-SOIC			HC08	85 °C	-40 °C	0.295 in	7.5 mm
