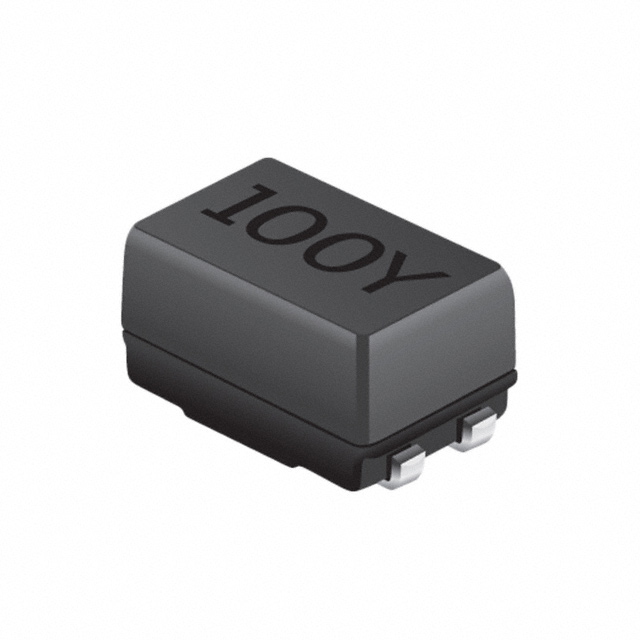

SRF0905A Series
Manufacturer: Bourns Inc.
Beta
⌘K
COMMON MODE CHOKES DUAL 470UH 1KOHM 100KHZ 1.1A 0.14OHM DCR SMD AUTOMOTIVE AEC-Q200 T/R
| Part | Impedance @ Frequency | Inductance @ Frequency | Mounting Type | Voltage Rating - DC | Number of Lines | Filter Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current Rating (Max) [Max] | Package / Case | DC Resistance (DCR) (Max) [Max] | Height (Max) [z] | Height (Max) [z] | Operating Temperature [Min] | Operating Temperature [Max] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 kOhms | 470 µH | Surface Mount | 80 V | 2 | Signal Line | 6 mm | 0.236 " | 0.362 in | 9.2 mm | 1.1 A | Horizontal 4 PC Pad | 140 mOhm | 0.248 in | 6.3 mm | -40 C | 105 ░C | |
Bourns Inc. | 200 Ohms | 10 µH | Surface Mount | 80 V | 2 | Signal Line | 6 mm | 0.236 " | 0.362 in | 9.2 mm | 1.6 A | Horizontal 4 PC Pad | 80 mOhm | 0.248 in | 6.3 mm | -40 C | 105 ░C | AEC-Q200 |
