8108 Series
Manufacturer: Belden Inc.
Beta
⌘K

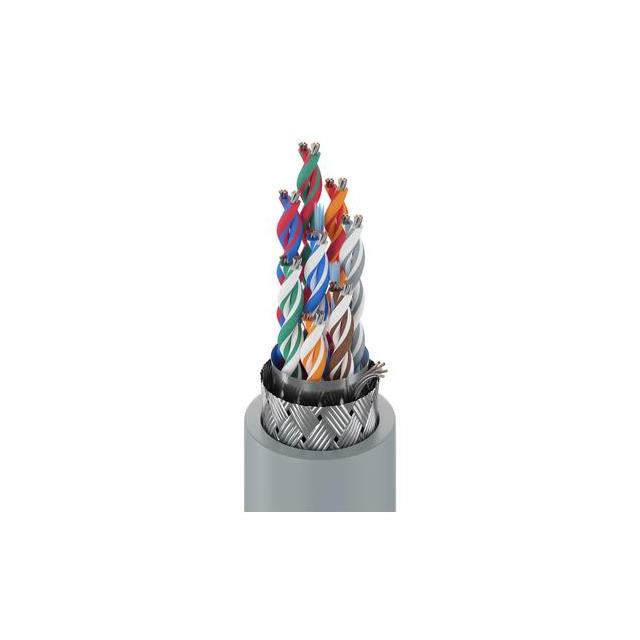

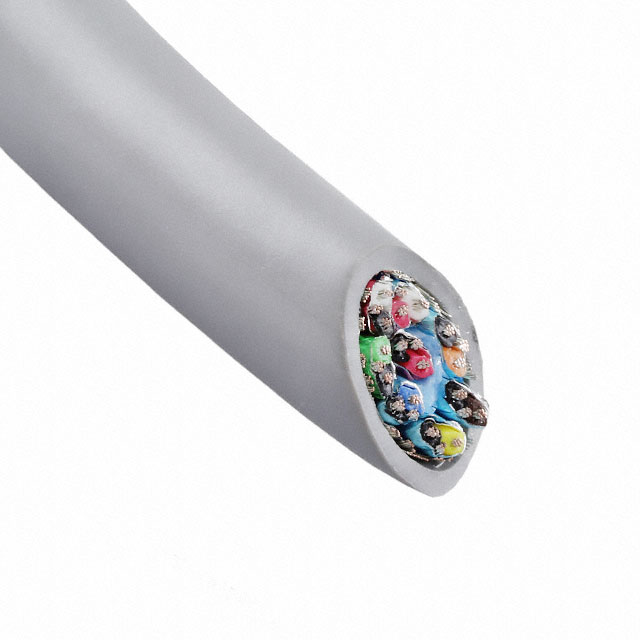

MULTI-PAIR 16COND 24AWG 100'
| Part | Shield Material | Shield Coverage | Conductor Material | Wire Gauge | Shield Type | Jacket Color | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Ratings | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | 24 AWG | Braid Foil | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Pair | 0.37 in | 9.4 mm | Drain Wire | Foam Polyethylene (FPE) | 16 | 0.035 in | 0.889 mm | 80 °C | -30 ░C | 100 ft | 30.5 m | UL Style 2919 | Computer | 7 | 32 AWG | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | 24 AWG | Braid Foil | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Pair | 0.37 in | 9.4 mm | Drain Wire | Foam Polyethylene (FPE) | 16 | 0.035 in | 0.889 mm | 80 °C | -30 ░C | UL Style 2919 | Computer | 7 | 32 AWG | 304.8 m | 1000 ft |
