845-104 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 104POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Termination	Number of Positions	Contact Material	Number of Positions/Bay/Row	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Card Type	Contact Finish	Read Out	Card Thickness [Max]	Card Thickness [Min]	Gender	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-104-540-807	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Through Hole	0.25 Ám	10 Áin	M3 Threaded Insert Top Mount Opening	Wire Wrap	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 845-104-560-807	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	M3 Threaded Insert Top Mount Opening	Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Card Extender

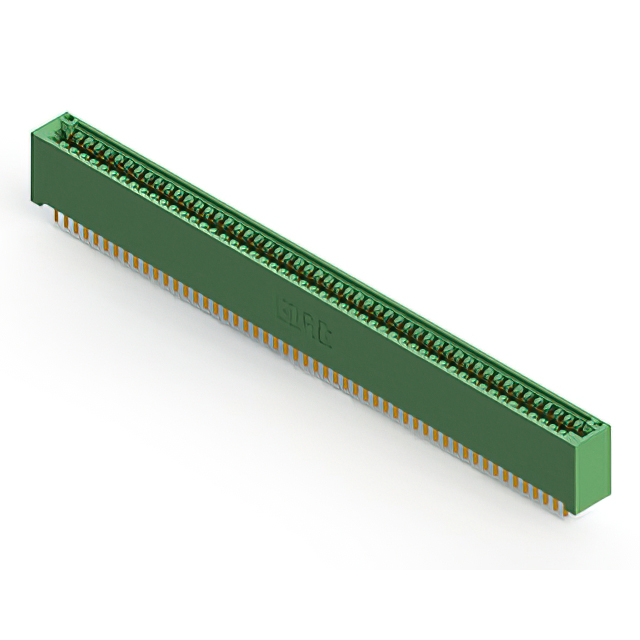

EDAC Inc. 845-104-521-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Through Hole	0.25 Ám	10 Áin		Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 845-104-556-812	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Card Extender	0.128 "	3.25 mm

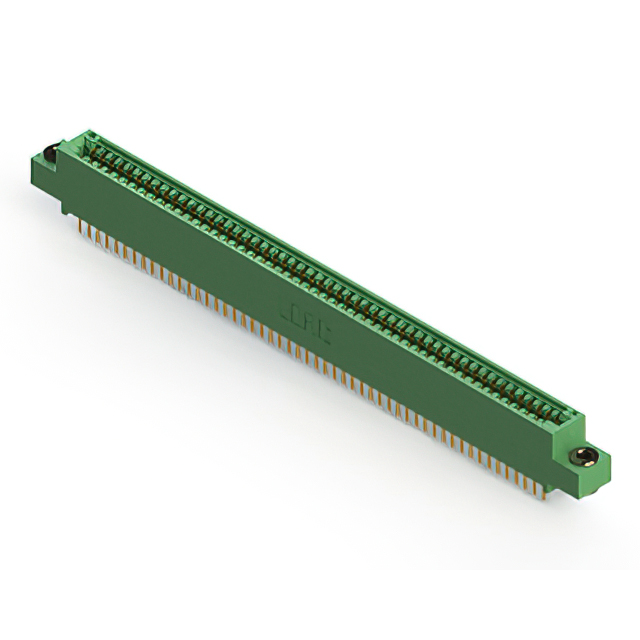

EDAC Inc. 845-104-524-503	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Through Hole	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		0.116 "	2.95 mm

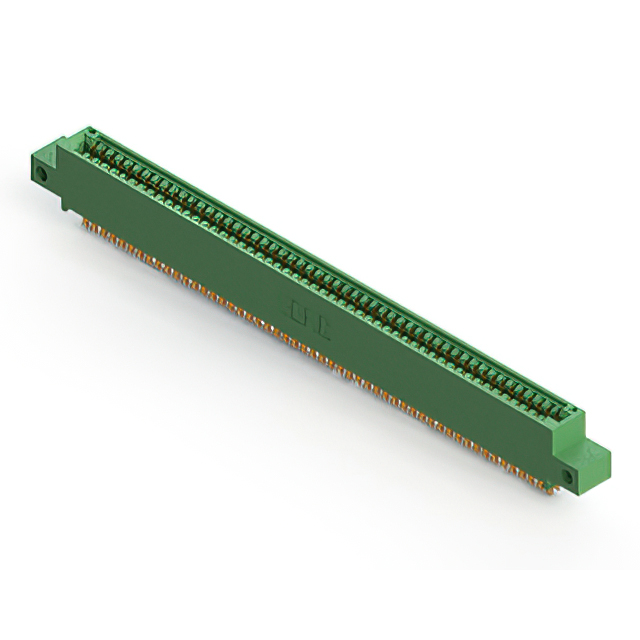

EDAC Inc. 845-104-555-512	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Card Extender	0.128 "	3.25 mm
EDAC Inc. 845-104-559-804	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Right Angle Through Hole	0.25 Ám	10 Áin		Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		0.156 "	3.96 mm
EDAC Inc. 845-104-540-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Through Hole	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 845-104-560-804	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin		Solder	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Card Extender	0.156 "	3.96 mm
EDAC Inc. 845-104-544-503	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Cantilever	Through Hole	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	Wire Wrap	104	Copper Alloy	52	Green	125 °C	-40 C	2	Non Specified - Dual Edge	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		0.116 "	2.95 mm
