861400062 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Material	Mounting Type	Termination	Style	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Number of Positions	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Current Rating (Amps)

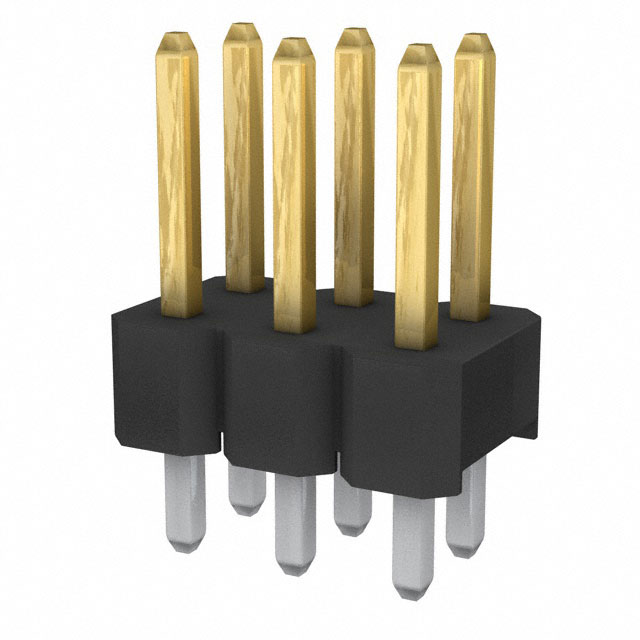

Amphenol ICC (FCI) 861400062YO2LF	Copper Alloy	Through Hole	Solder	Board to Board Cable	7 mm	0.276 in	0.118 in	3 mm	UL94 V-0	2	-55 °C	125 °C	Unshrouded	0.496 in	12.6 mm	Gold or Gold GXT™	Male Pin	All	6	Square	0.1 in	2.54 mm	Breakaway Header	0.102 in	2.6 mm	0.203 Ám	8 Áin	Thermoplastic	1000 VDC	2.54 mm	0.1 in	Push-Pull	3 A

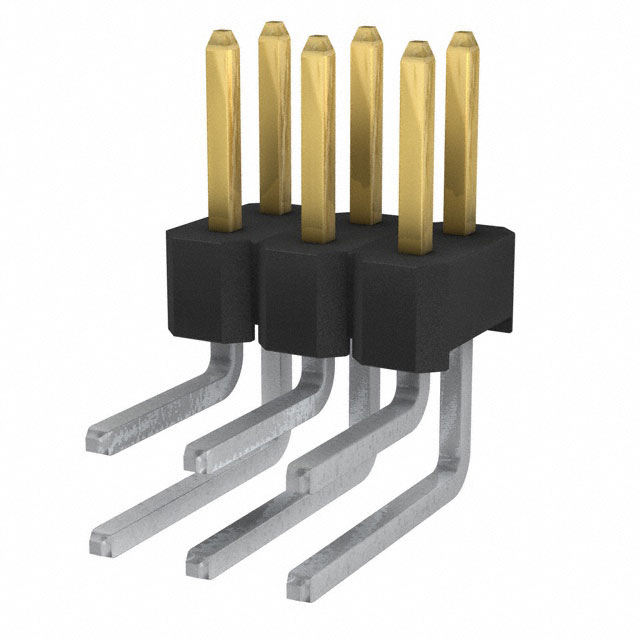

Amphenol ICC (FCI) 861400062LO2LF	Copper Alloy	Through Hole Right Angle	Solder		7 mm	0.276 in	0.118 in	3 mm	UL94 V-0	2	-55 °C	125 °C	Unshrouded			Gold or Gold GXT™	Male Pin	All	6	Square	0.1 in	2.54 mm	Breakaway Header			0.203 Ám	8 Áin	Thermoplastic	1000 VDC	2.54 mm	0.1 in	Push-Pull	3 A
