1318301 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

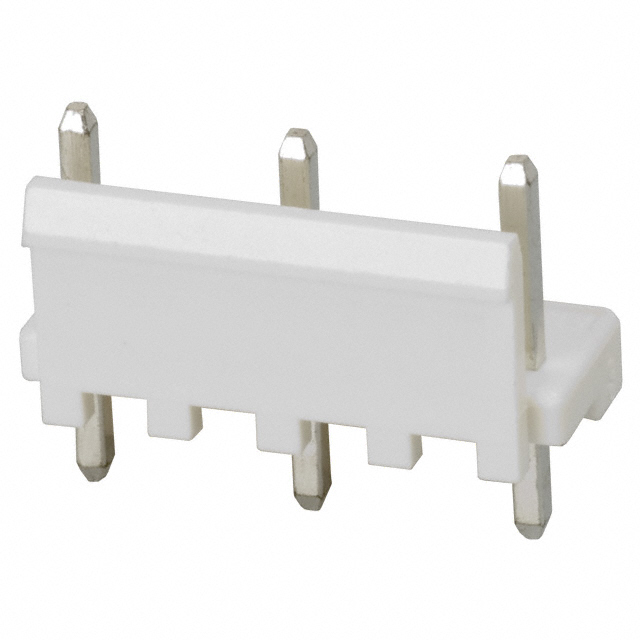

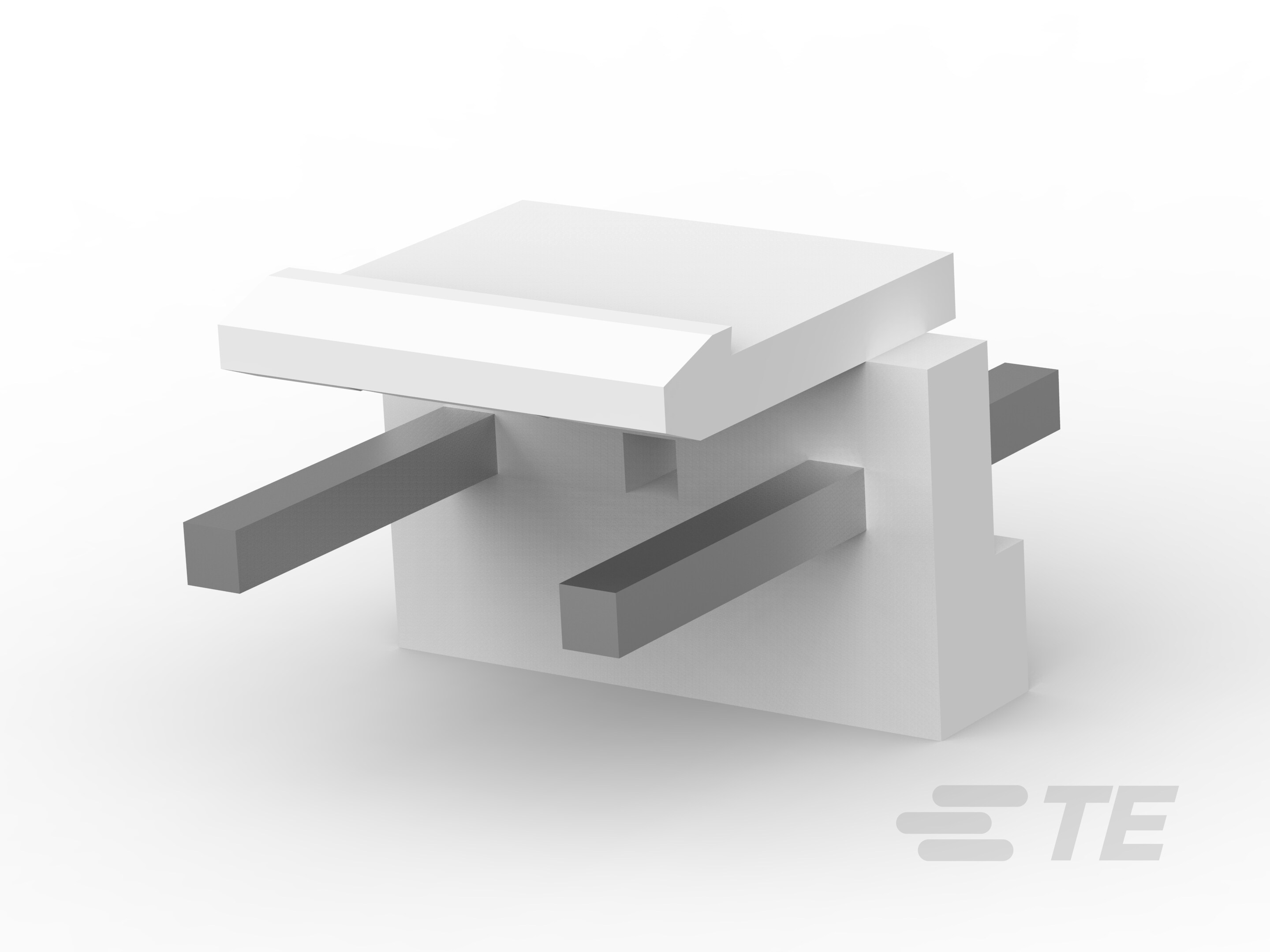

3.96EP HDR ASSY 3(5)P NAT/TUBE ROHS COMPLIANT: YES
| Part | Fastening Type | Applications | Current Rating (Amps) | Contact Material | Contact Shape | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Mounting Type | Insulation Height | Insulation Height | Termination | Contact Finish - Post | Style | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Voltage Rating | Insulation Color | Contact Length - Mating | Contact Length - Mating | Insulation Material | Contact Length - Post | Contact Length - Post | Contact Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions | Number of Positions Loaded [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Locking Ramp | General Purpose Industrial Lighting | 7.5 A | Brass | Square | Shrouded - 1 Wall | -25 °C | 105 ░C | Header | 1 | Through Hole | 0.118 in | 3 mm | Solder | Tin | Board to Cable/Wire | 3 | 14.4 mm | 0.567 " | 250 VAC | Natural | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT) Glass Filled | 0.146 in | 3.7 mm | Male Pin | 0.156 in | 3.96 mm | UL94 V-0 | ||
 TE Connectivity Raychem Cable Protection | Locking Ramp | General Purpose Industrial Lighting | 7.5 A | Brass | Square | Shrouded - 1 Wall | -25 °C | 105 ░C | Header | 1 | Through Hole | 0.118 in | 3 mm | Solder | Tin | Board to Cable/Wire | 4 | 14.4 mm | 0.567 " | 250 VAC | Natural | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT) Glass Filled | 0.146 in | 3.7 mm | Male Pin | 0.156 in | 3.96 mm | UL94 V-0 | 7 | |

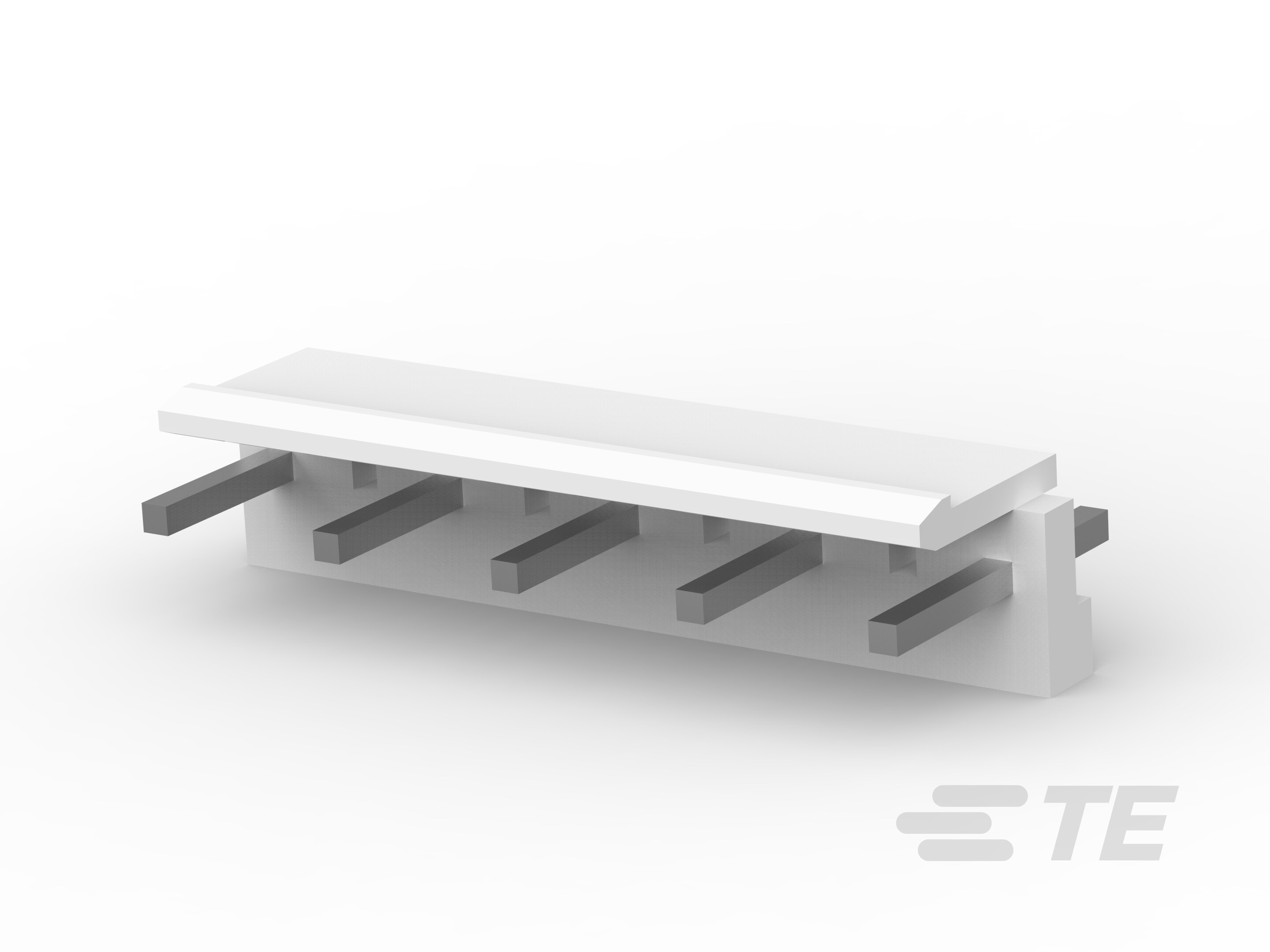

 TE Connectivity Raychem Cable Protection | Locking Ramp | General Purpose Industrial Lighting | 7.5 A | Brass | Square | Shrouded - 1 Wall | -25 °C | 105 ░C | Header | 1 | Through Hole | 0.118 in | 3 mm | Solder | Tin | Board to Cable/Wire | 14.4 mm | 0.567 " | 250 VAC | Natural | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT) Glass Filled | 0.146 in | 3.7 mm | Male Pin | 0.156 in | 3.96 mm | UL94 V-0 | 9 | 5 |
