ZPDR Series

Catalog

CONN RCPT HSG 20POS 1.50MM

Part	Note	Fastening Type	Contact Termination	Number of Positions	Connector Type	Contact Type	Mounting Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Insulation Material	Color

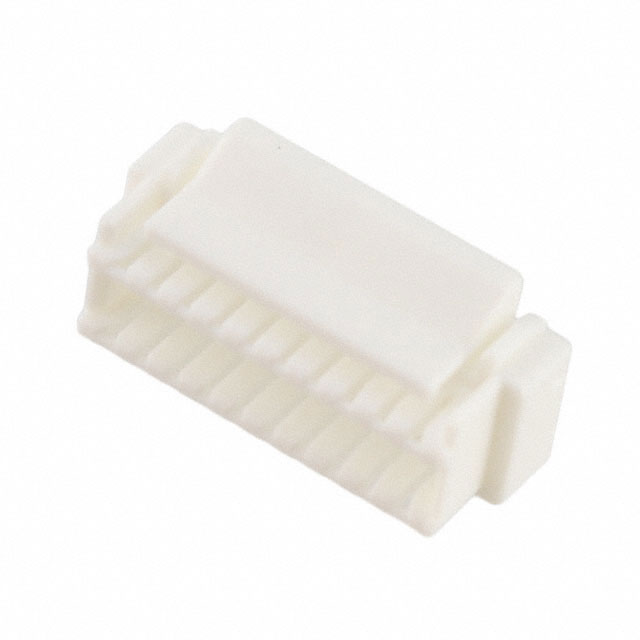

JST Sales America Inc. ZPDR-20V-S	Contacts Not Included	Latch Lock	Crimp	20	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

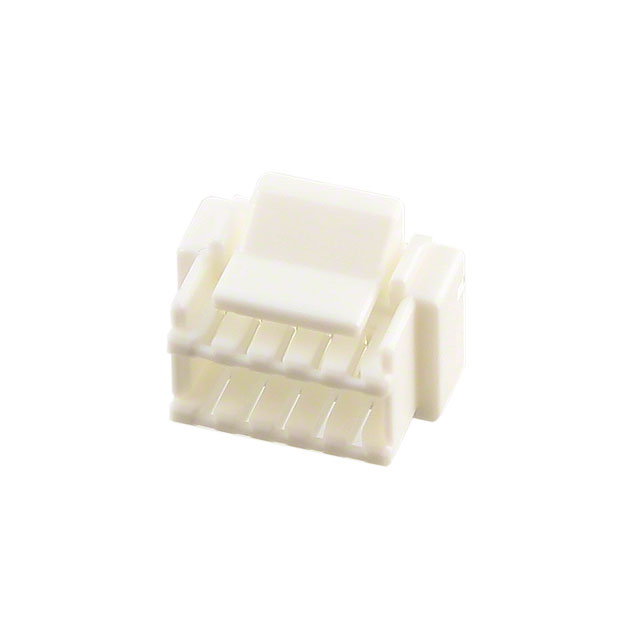

JST Sales America Inc. ZPDR-10V-S	Contacts Not Included	Latch Lock	Crimp	10	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

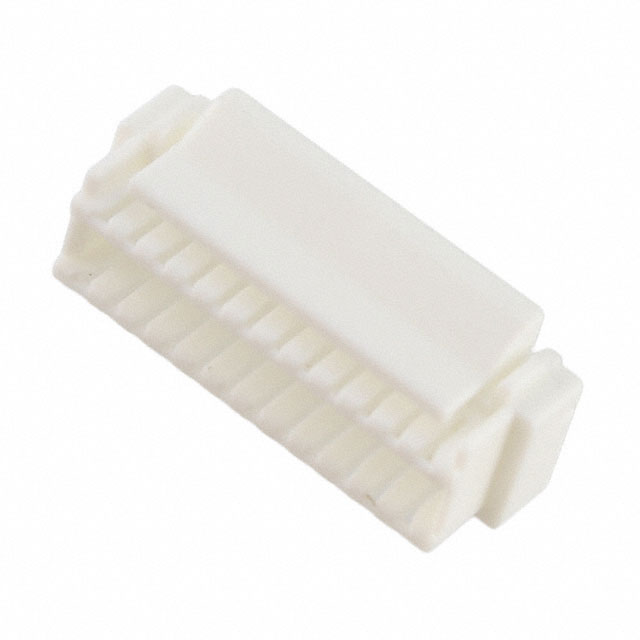

JST Sales America Inc. ZPDR-24V-S	Contacts Not Included	Latch Lock	Crimp	24	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

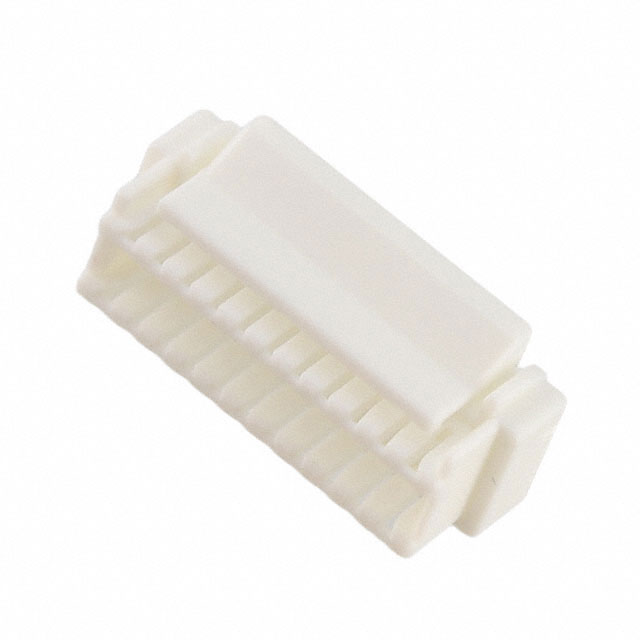

JST Sales America Inc. ZPDR-22V-S	Contacts Not Included	Latch Lock	Crimp	22	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

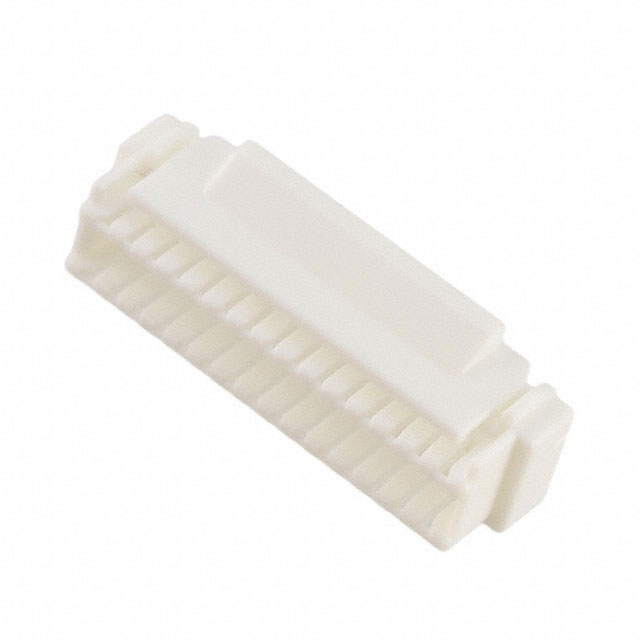

JST Sales America Inc. ZPDR-30V-S	Contacts Not Included	Latch Lock	Crimp	30	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

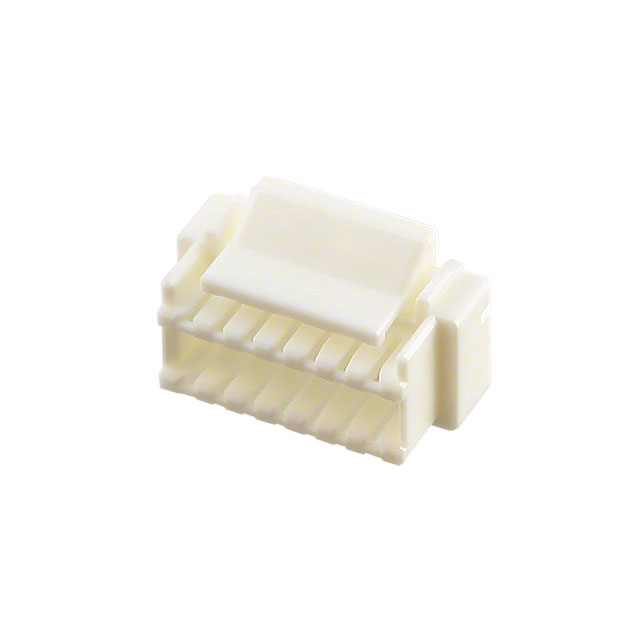

JST Sales America Inc. ZPDR-14V-S	Contacts Not Included	Latch Lock	Crimp	14	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

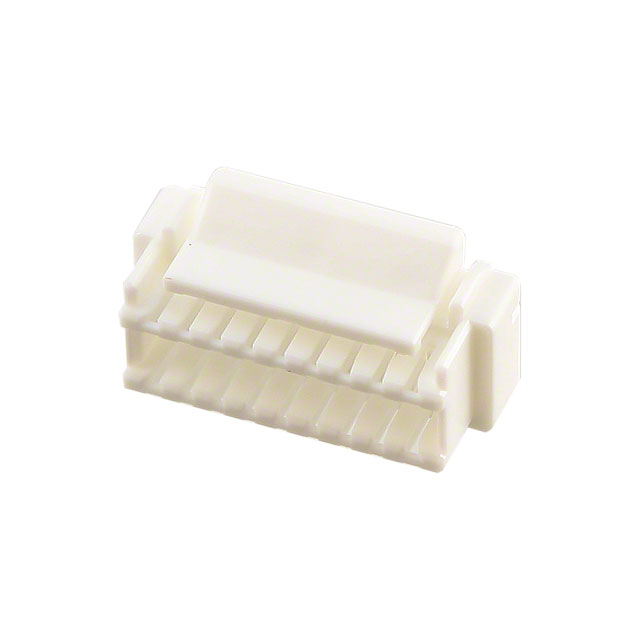

JST Sales America Inc. ZPDR-18V-S	Contacts Not Included	Latch Lock	Crimp	18	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

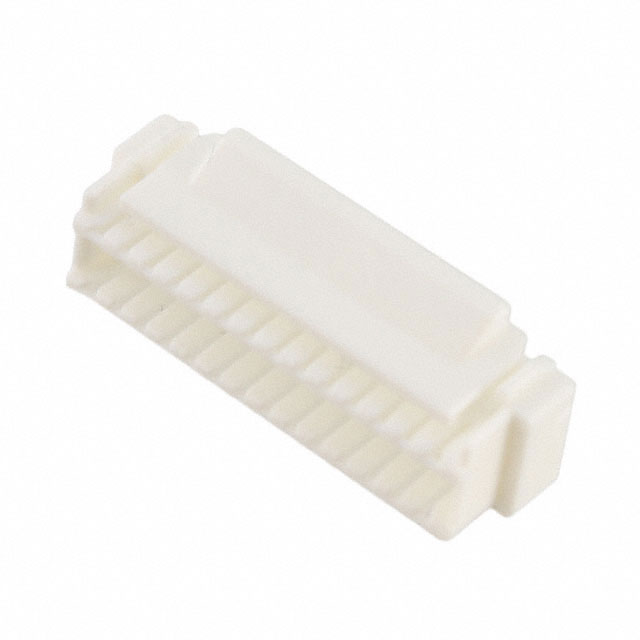

JST Sales America Inc. ZPDR-28V-S	Contacts Not Included	Latch Lock	Crimp	28	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

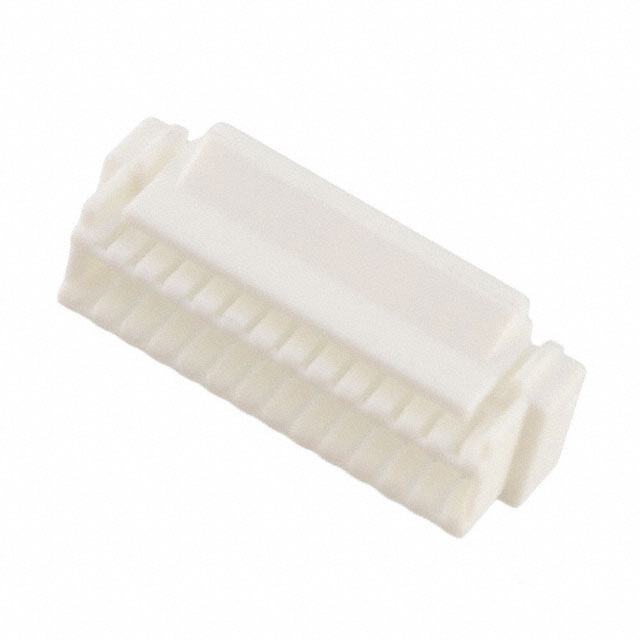

JST Sales America Inc. ZPDR-26V-S	Contacts Not Included	Latch Lock	Crimp	26	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural

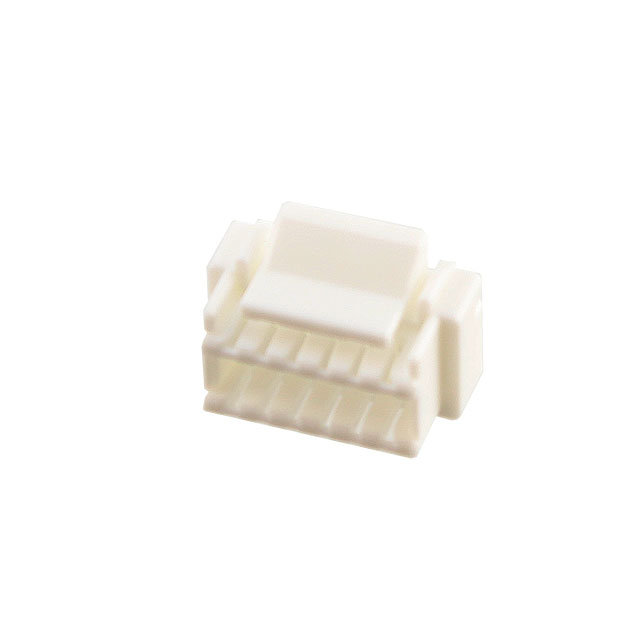

JST Sales America Inc. ZPDR-12V-S	Contacts Not Included	Latch Lock	Crimp	12	Receptacle	Female Socket	Free Hanging (In-Line)	0.059 in	1.5 mm	85 °C	-25 °C	2	Polybutylene Terephthalate (PBT)	Natural
