HDF-R15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB HD PLUG 15P R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Color | Termination | Contact Type | Number of Rows [custom] | Mounting Type | Connector Type | Contact Finish Thickness | Connector Style | Flange Feature | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Ingress Protection | Shell Material, Finish | Current Rating (Amps) | Features | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

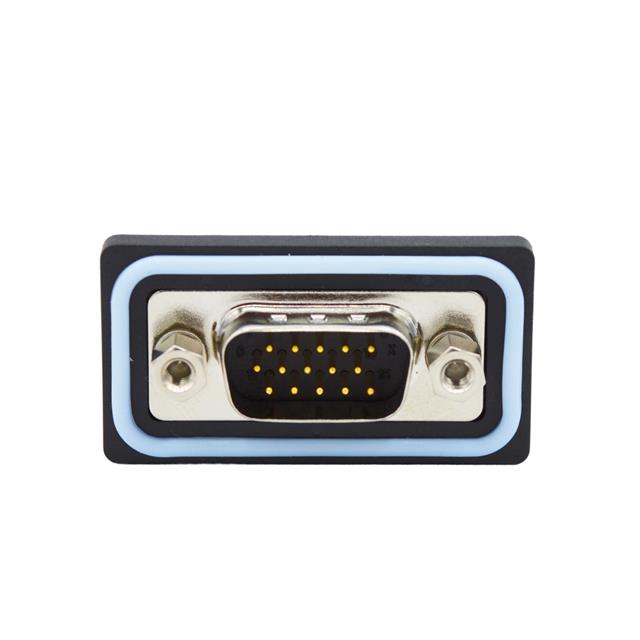

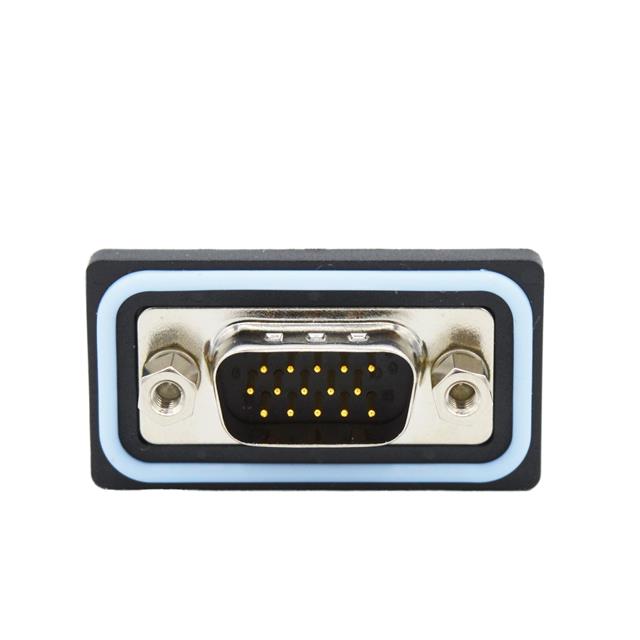

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Plug Male Pins | Flash | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | Grounding Indents | UL94 V-0 | ||

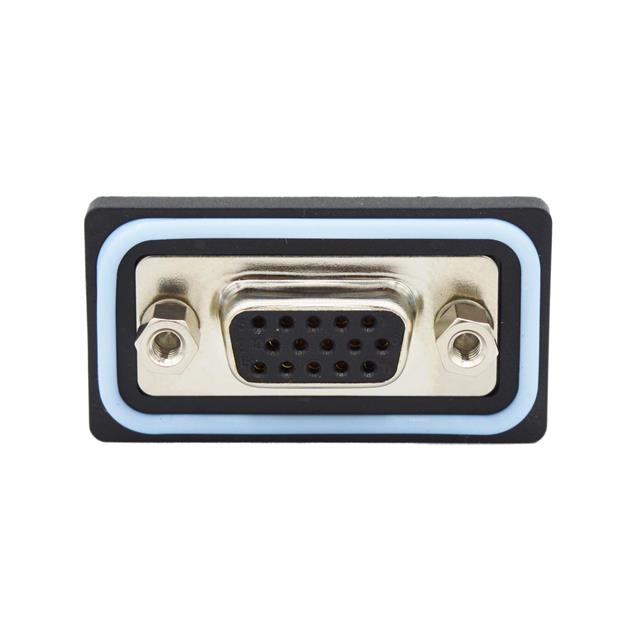

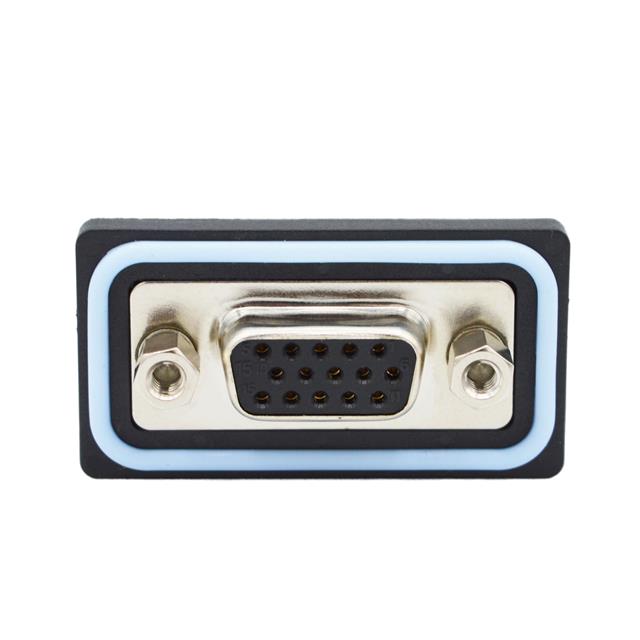

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Flash | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | Board Lock Mounting Brackets | UL94 V-0 | ||
 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Plug Male Pins | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Flash | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | UL94 V-0 | |||
NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | UL94 V-0 | 30 Áin | 0.76 Ám | ||
NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Solder | Signal | 3 | Panel Mount Right Angle Through Hole | Plug Male Pins | D-Sub High Density | 4-40 Mating Side Female Screwlock | 15 | (DE E) High Density | 1 | Gold | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 3 A | Grounding Indents | UL94 V-0 | 30 Áin | 0.76 Ám |
