29013 Series

Catalog

POWER METER LCD PANEL MOUNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Display Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Measuring Range [Min]	Measuring Range [Max]	Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Measuring Type	Weight [custom]	Weight [custom]	Output Type

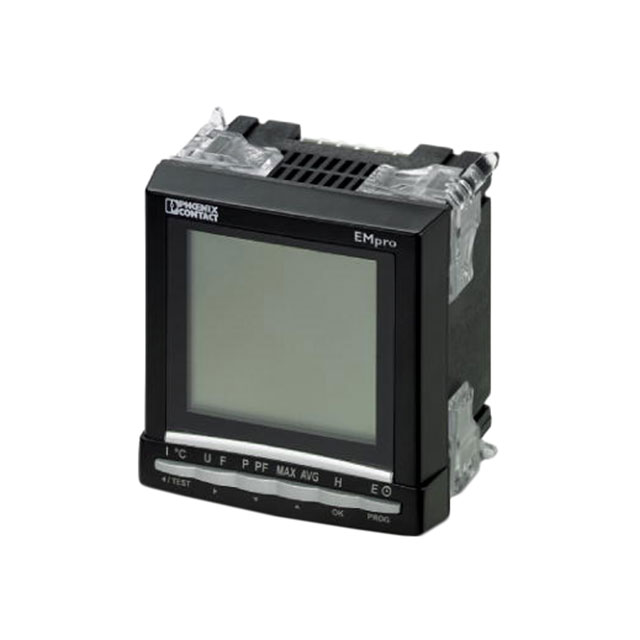

Phoenix Contact 2901366	55 °C	-10 °C	1.8 lbs	816.5 g	Backlight LCD - Black Characters	92 mm	92 mm	Panel Mount	0 A 11 VAC	700 VAC 9999 A	Energy Monitor	Screw Terminal	240 VDC 250 VDC	110 V 120 V	IP52 - Dust Protected	Current (3-Phase) Voltage Wattage

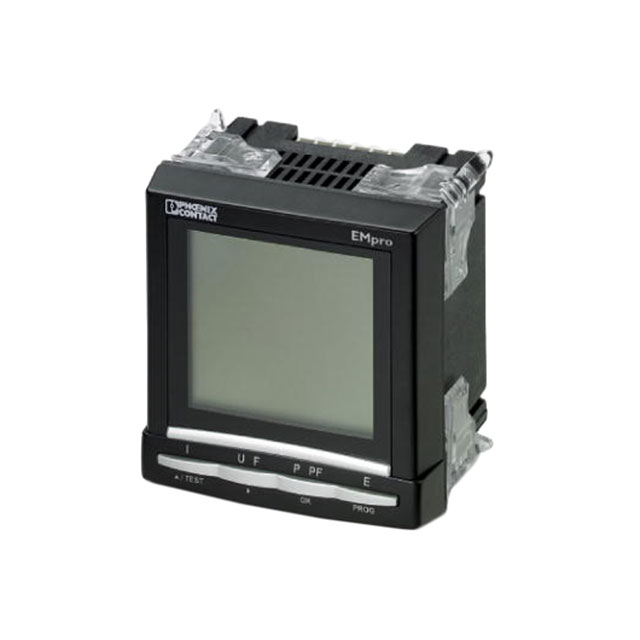

Phoenix Contact 2901364	55 °C	-10 °C			Backlight LCD - Black Characters	92 mm	92 mm	Panel Mount	0 A 28 VAC	500 VAC 9999 A	Energy Monitor	Screw Terminal	400 VAC	110 VAC	IP52 - Dust Protected	Current (3-Phase) Voltage Wattage	0.882 lb	400.07 g
Phoenix Contact 2901363	55 °C	-10 °C			LCD - Black Characters			DIN Rail	0 A 28 VAC	519 VAC 9999 A	Energy Monitor	Screw Terminal	277 VAC/DC	110 VAC	IP51 - Dust Protected	Current (3-Phase) Voltage Wattage	0.688 lb	312.07 g	Option Cards Available Solid State

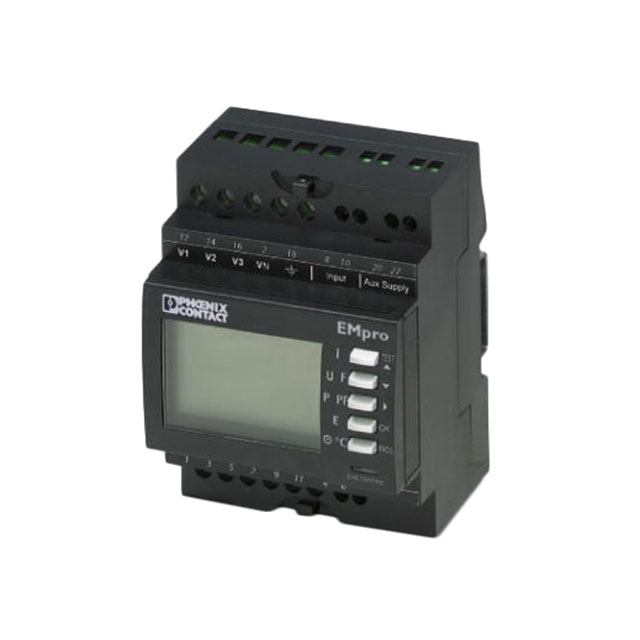

Phoenix Contact 2901362	55 °C	-10 °C			LCD - Black Characters			DIN Rail	0 A 28 VAC	519 VAC 9999 A	Energy Monitor	Screw Terminal	277 VAC/DC	110 VAC	IP51 - Dust Protected	Current (3-Phase) Voltage Wattage	0.661 lb	299.82 g	Solid State
