A3U Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

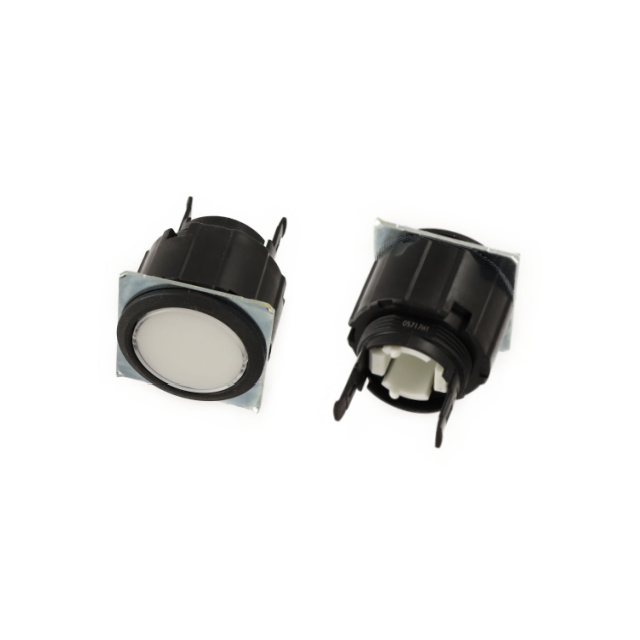

PUSHBUTTON SWITCHES NON-LIGHTED PB 1C,WHITE
| Part | Electrical Life | Mechanical Life | Ingress Protection | Voltage Rating - DC | Color - Actuator/Cap | Actuator Marking | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Switch Function | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Type | Termination Style | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 200000 Cycles | 1000000 Cycles | IP40 | 30 V | Clear | No Marking | 100 mA | 25.2 mm | Panel Mount Front | On-Mom | SPDT | -20 ░C | 70 °C | Standard | Connector | Button Flush Round |
 Omron Automation and Safety | IP40 | 30 V | White | No Marking | 100 mA | 25.2 mm | Panel Mount Front | On-Mom | DPDT | -20 ░C | 70 °C | Standard | Connector | Button Flush Round | ||
 Omron Automation and Safety | IP40 | 30 V | White | No Marking | 100 mA | 25.2 mm | Panel Mount Front | On-Mom | SPDT | -20 ░C | 70 °C | Standard | Connector | Button Flush Round |
