745-126 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 126POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Gender	Read Out	Card Type	Number of Positions/Bay/Row	Color	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 745-126-525-206	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm

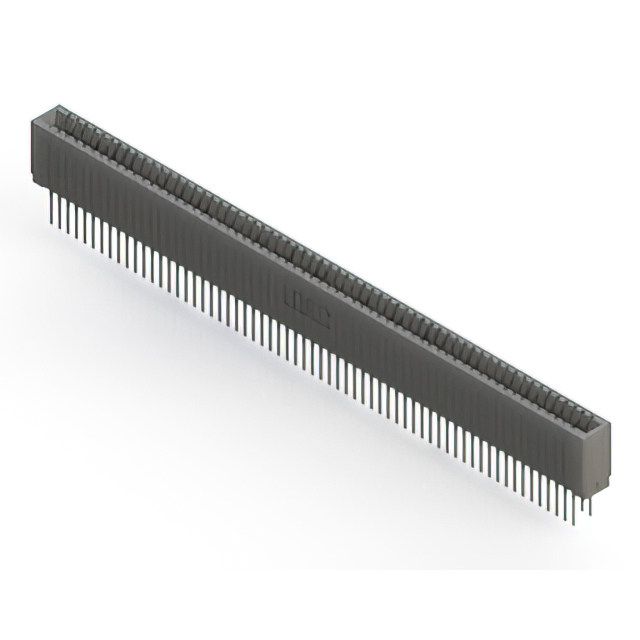

EDAC Inc. 745-126-522-201	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-525-201	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-545-206	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-540-201	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	2	0.07 in 1.78 mm	0.054 in 1.37 mm

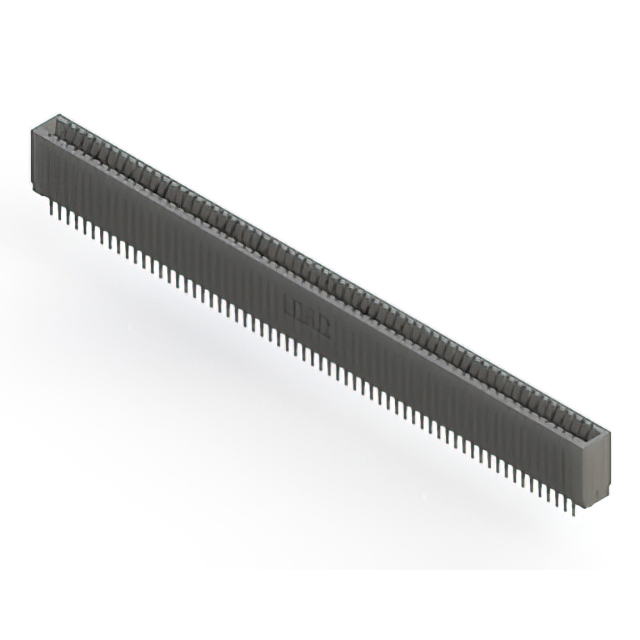

EDAC Inc. 745-126-520-201	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-522-206	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-540-206	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-126-520-206	2	Polyester Thermoplastic	126	Cantilever	-40 C	105 ░C	Through Hole	Gold	Female	Dual	Non Specified - Dual Edge	63	Black	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	2	0.07 in 1.78 mm	0.054 in 1.37 mm
