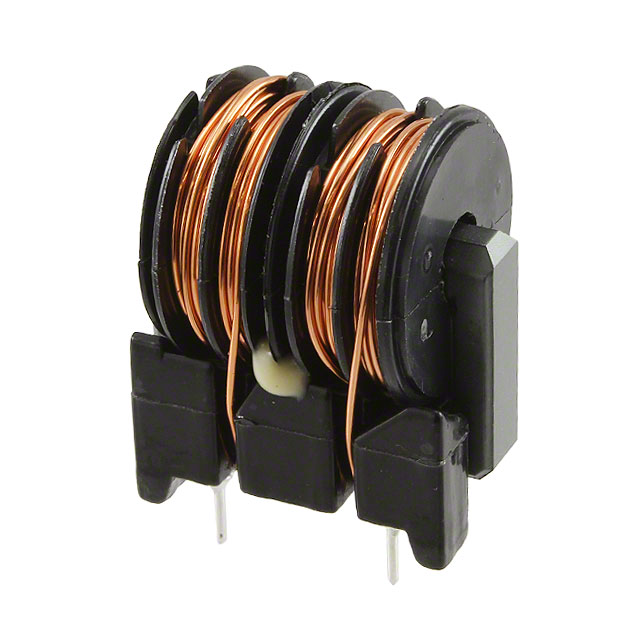

SS26V Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250V 1.8A 12.3MH

Part	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Filter Type	Package / Case	Mounting Type
KEMET SS26V-R180123	1.8 A	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	300 mOhm	12.3 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-060640	600 mA	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	1.8 Ohm	64 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-050880	500 mA	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	2.4 Ohm	1 kHz 88 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-200076	2 A	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	250 mOhm	7.6 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole

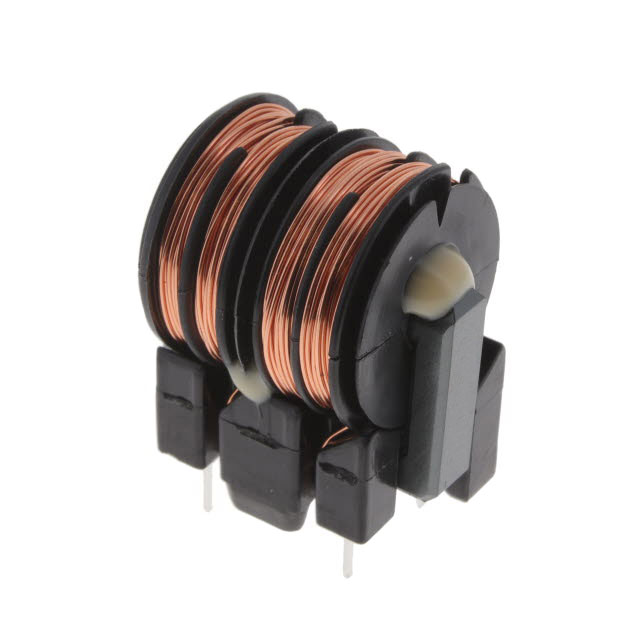

KEMET SS26V-R060860	600 mA	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	1.8 Ohm	86 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-R300038	3 A	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	100 mOhm	3.8 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-100250	1 A	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	700 mOhm	1 kHz 25 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-070510	700 mA	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	1.4 Ohm	51 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-R070680	700 mA	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	1.4 Ohm	1 kHz 68 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
KEMET SS26V-R200102	2 A	0.807 in	26 mm	20.5 mm	1.024 in	1.201 in 30.5 mm	2	250 mOhm	1 kHz 10.2 mH	120 °C	-25 °C	250 V	Power Line	Vertical 4 PC Pin	Through Hole
