SLW30 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

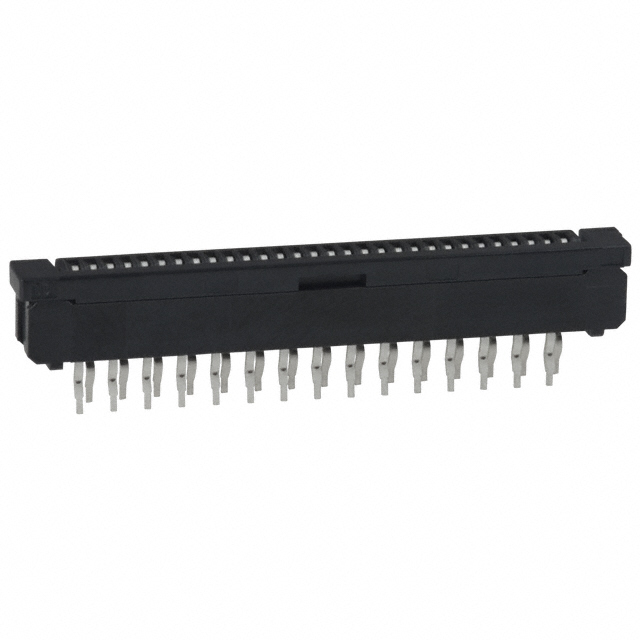

CONN FFC FPC VERT 30POS 1MM PCB
| Part | Mating Cycles | Housing Color | Actuator Material | Housing Material | FFC, FCB Thickness | Pitch | Pitch | Contact Finish | Voltage Rating | Locking Feature | Termination | Contact Material | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 20 | Black | Glass Filled Nylon Polyamide (PA) | Glass Filled Nylon Polyamide (PA) | 0.33 mm | 1 mm | 0.039 in | Tin | 100 V | Slide Lock | Kinked Pin | Phosphor Bronze | 0.217 in | 5.5 mm | Contacts Vertical - 1 Sided | FFC FPC | -55 C | 85 °C | Through Hole | 30 | UL94 V-0 |
