6ES76478 Series

Manufacturer: Siemens

Catalog

Catalog

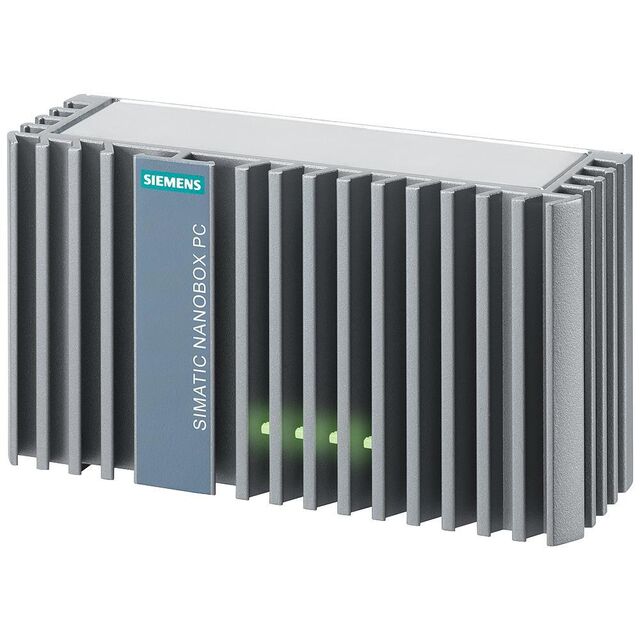

SIMATIC IPC227G

...

Part	Ingress Protection	Expansion Type	Core Processor [custom]	Core Processor	Voltage - Supply	Mounting Type	Operating System	Approval Agency	Type	Memory	Memory	Display Type	Storage	Storage	Core Processor [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 6ES76478CE332AA1	IP40	M.2	4	Intel® Atom® X6413E	24 V	DIN Rail Wall Mount	Supports Windows 10	CE cULus EAC FCC KC RCM UL	Box PC	16 GB	DDR4 SODIMM	No Display	256 GB	SSD
Siemens 6ES76478BB210LA2	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB522CA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB315RA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB310CA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB611CA1	IP40	PCI PCIe		Intel® Celeron® N2930	24 V	DIN Rail Wall Mount	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR4 SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB246CA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478CE122AA1	IP40	M.2	4	Intel® Atom® X6413E	24 V	DIN Rail Wall Mount	Supports Windows 10	CE cULus EAC FCC KC RCM UL	Box PC	16 GB	DDR4 SODIMM	No Display	256 GB	SSD
Siemens 6ES76478BB617CA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
Siemens 6ES76478BB312LA1	IP40	PCIe		Intel® Celeron® N2930	24 V	DIN Rail	Supports Windows 7/10	CE cULus FCC KC RCM UL	Box PC	8 GB	DDR3L SODIMM	No Display		Supports SATA	4	0 °C	60 °C
