342186 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

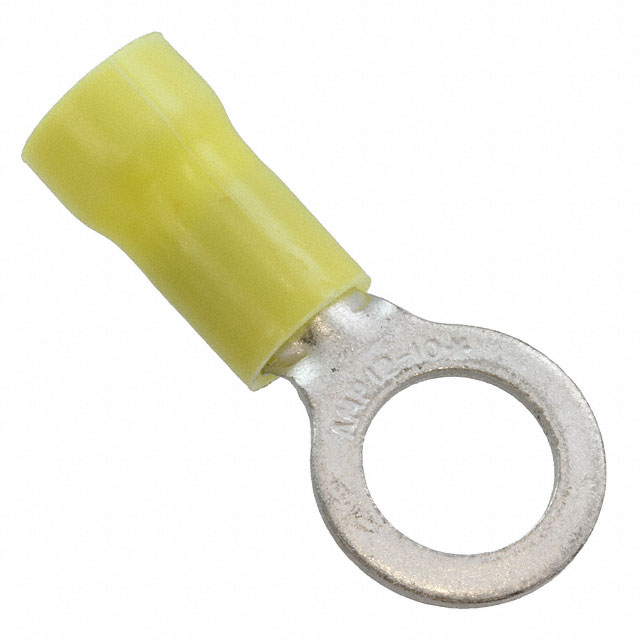

12-10 F.E.P.G. RING TONGUE NO.
| Part | Termination | Thickness | Thickness | Stud/Tab Size | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Mounting Type | Contact Material | Features | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Color | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | 0.99 mm | 0.039 in | 0.3125 Stud | Insulated | 12 AWG | 10 AWG | Tin | Free Hanging (In-Line) | Copper | Serrated Termination | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | Poly-Vinyl Chloride (PVC) | 1.343 in | 34.1 mm | 13.49 mm | 0.531 " | Yellow | Circular |
