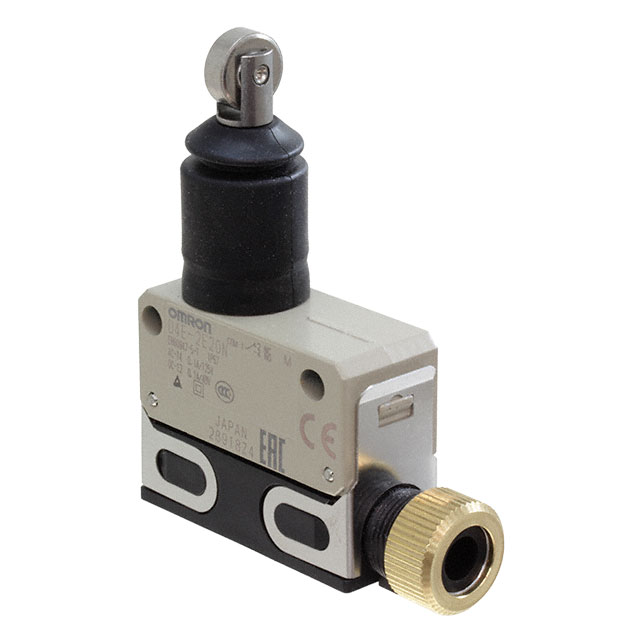

D4E-2E20 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Differential Travel | Differential Travel | Actuator Type | Circuit | Operating Force | Voltage Rating - DC | Current Rating (Amps) | Voltage Rating - AC | Ingress Protection | Release Force | Pretravel | Pretravel | Operating Position | Operating Position | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Overtravel | Overtravel | Mounting Type | Mechanical Life | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 0.1 mm | 0.004 in | Roller Plunger | SPDT | 1200 gf | 30 V | 100 mA | 125 V | IP67 - Dust Tight Waterproof | 500 gf | 0.06 in | 1.5 mm | 41.3 mm | 1.625 " | -10 °C | 80 °C | On-Mom | 0.118 " | 3 mm | Chassis Mount | 10000000 Cycles | Screw Terminal |
