TPS65170 Series
Manufacturer: Texas Instruments
Beta
⌘K
4-CH LCD BIAS W/ REGULATORS FOR EXTERNAL CHARGE PUMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Applications | Package / Case | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Main Purpose | Current - Output | Frequency - Switching | Regulator Topology | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 85 °C | -40 C | 1 mA | Surface Mount | 14.7 V | 8.6 V | 28-VQFN (5x5) | LCD TV/Monitor | 28-VFQFN Exposed Pad | |||||||||||||

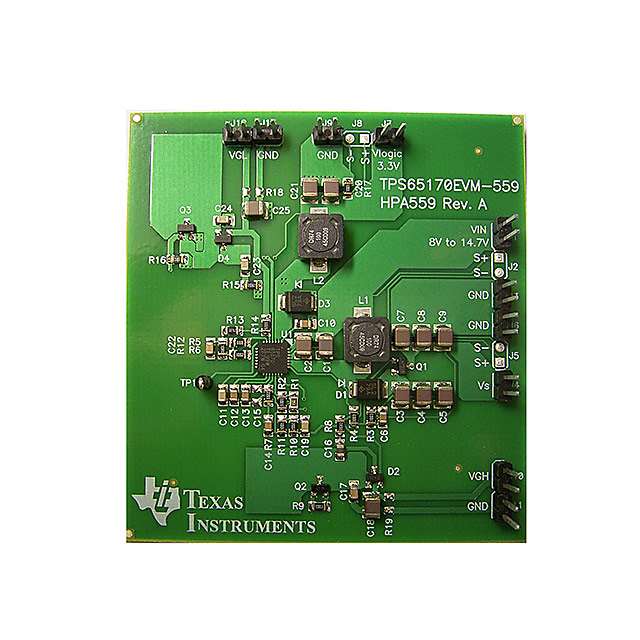

 Texas Instruments | 4 Non-Isolated Outputs Non-Isolated | 4 | Fully Populated | Board(s) | Special Purpose DC/DC LCD Supply | 1.5 A 1.7 A 50 mA | 750 kHz | Buck-Boost | TPS65170 | 8 V | 14.7 V | -7 V 3.3 V 15.6 V 26 V | Board(s) | |||||||||
 Texas Instruments | 85 °C | -40 C | 1 mA | Surface Mount | 14.7 V | 8.6 V | 28-VQFN (5x5) | LCD TV/Monitor | 28-VFQFN Exposed Pad |
