PCB-C Series

Manufacturer: Adam Tech

Catalog

CONN FFC FPC VERT 7POS 1MM SMD

Part	Current Rating (Amps)	Housing Color	Flat Flex Type	Pitch	Pitch	Termination	Features	FFC, FCB Thickness	Material Flammability Rating	Connector/Contact Type	Number of Positions	Contact Material	Cable End Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Voltage Rating

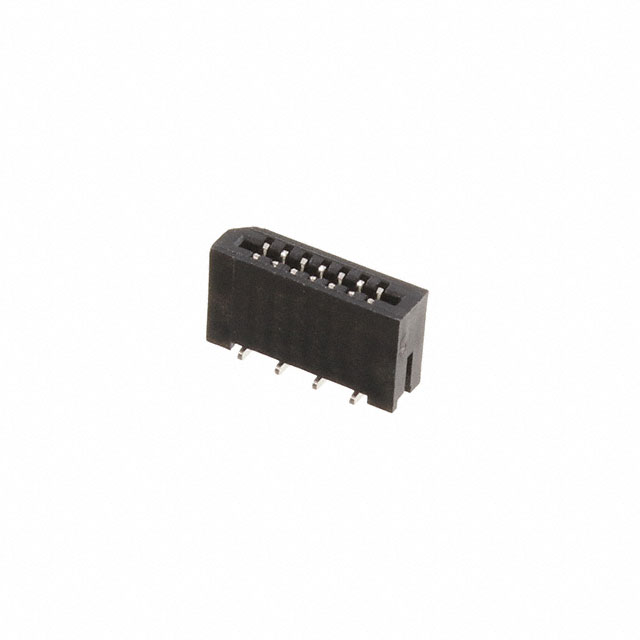

Adam Tech PCB-C-07-T-SMT	0.5 A	Black	FFC FPC	1 mm	0.039 in	Solder	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Vertical - 2 Sided	7	Phosphor Bronze	Straight	-55 C	85 °C	Thermoplastic	Surface Mount	Tin	0.22 in	5.59 mm

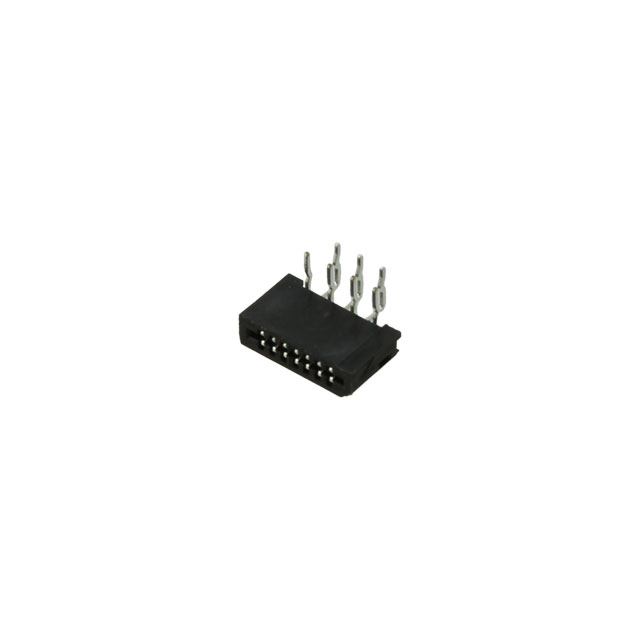

Adam Tech PCB-C-07-SA-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin		0.3 mm	UL94 V-0	Contacts Top and Bottom	7	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Right Angle Through Hole	Tin	0.11 in	2.8 mm	50 V

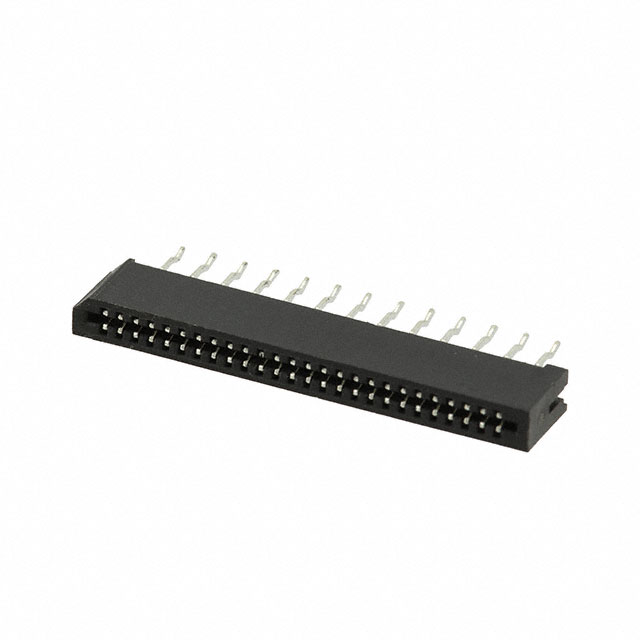

Adam Tech PCB-C-26-T-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Vertical - 2 Sided	26	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Through Hole	Tin	0.217 in	5.5 mm	50 V

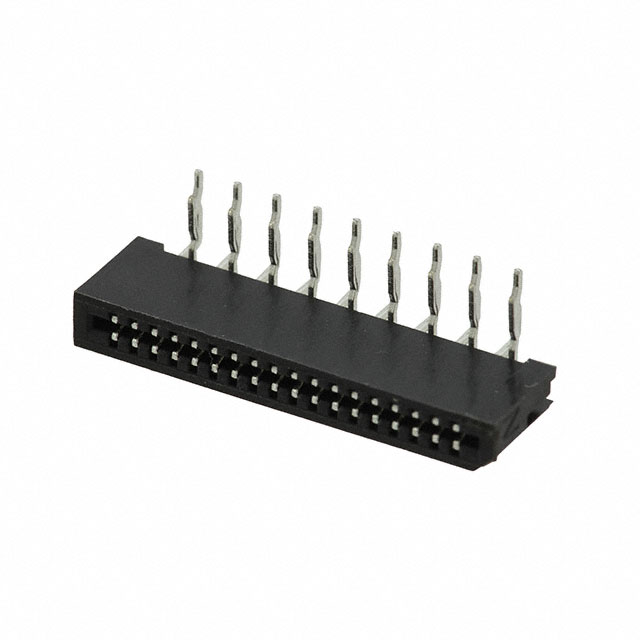

Adam Tech PCB-C-18-SA-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin		0.3 mm	UL94 V-0	Contacts Top and Bottom	18	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Right Angle Through Hole	Tin	0.11 in	2.8 mm	50 V
Adam Tech PCB-C5-22-SA-SMT		Black	FFC FPC	1 mm	0.039 in	Solder	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Top and Bottom	22	Copper Alloy	Straight	-25 °C	85 °C	Glass Filled Thermoplastic	Right Angle Surface Mount	Tin	0.11 in	2.8 mm

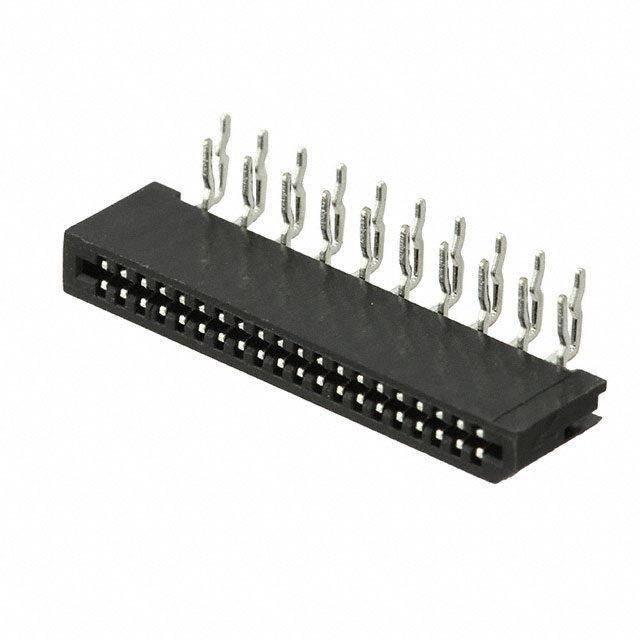

Adam Tech PCB-C-20-SA-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin		0.3 mm	UL94 V-0	Contacts Top and Bottom	20	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Right Angle Through Hole	Tin	0.11 in	2.8 mm	50 V
Adam Tech PCB-C-06-T-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Vertical - 2 Sided	6	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Through Hole	Tin	0.217 in	5.5 mm	50 V

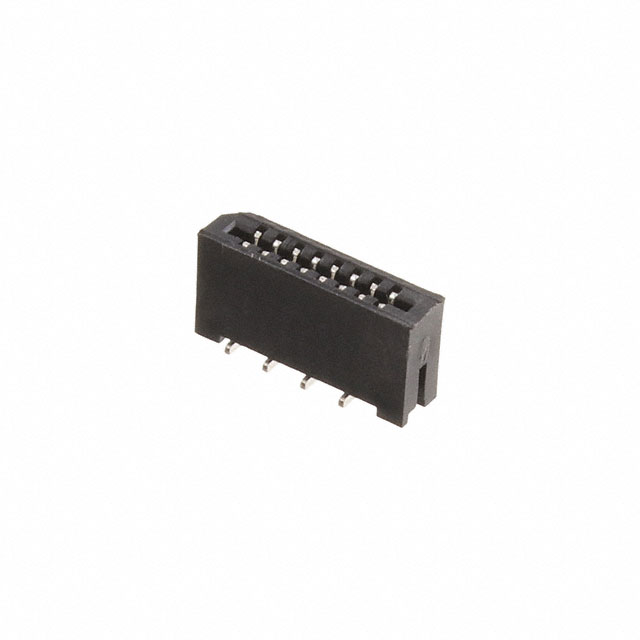

Adam Tech PCB-C-08-T-SMT	0.5 A	Black	FFC FPC	1 mm	0.039 in	Solder	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Vertical - 2 Sided	8	Phosphor Bronze	Straight	-55 C	85 °C	Thermoplastic	Surface Mount	Tin	0.22 in	5.59 mm
Adam Tech PCB-C5-11-SA-SMT		Black	FFC FPC	1 mm	0.039 in	Solder	Low Insertion Force (LIF)	0.3 mm	UL94 V-0	Contacts Top and Bottom	11	Copper Alloy	Straight	-25 °C	85 °C	Glass Filled Thermoplastic	Right Angle Surface Mount	Tin	0.11 in	2.8 mm
Adam Tech PCB-C-05-SA-20	0.5 A	Black	FFC FPC	1 mm	0.039 in	Kinked Pin		0.3 mm	UL94 V-0	Contacts Top and Bottom	5	Phosphor Bronze	Straight	-20 ░C	85 °C	Thermoplastic	Right Angle Through Hole	Tin	0.11 in	2.8 mm	50 V
