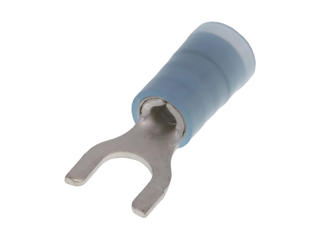

Avikrimp Spade Tongue Terminal for 22-18 AWG Wire, Stud Size 10 (M5)
Avikrimp Spade Tongue Terminal for 22-18 AWG Wire, Stud Size 10 (M5)
| Part | Width - Outer Edges [x] | Width - Outer Edges [x] | Material - Insulation | Contact Finish | Stud/Tab Size | Termination | Length - Overall [x] | Length - Overall | Insulation | Color | Length - Termination | Length - Termination | Contact Material | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Mounting Type | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.295 in | 7.49 mm | Nylon Polyamide (PA) | Electro-Tin | 8 Stud | Crimp | 0.804 in | 20.42 mm | Insulated | Blue | 10.54 mm | 0.415 in | Copper | 0.173 in | 4.39 mm | Free Hanging (In-Line) | 0.211 in | 5.36 mm | Standard |
