ELG686M Series
Manufacturer: KEMET
Beta
⌘K

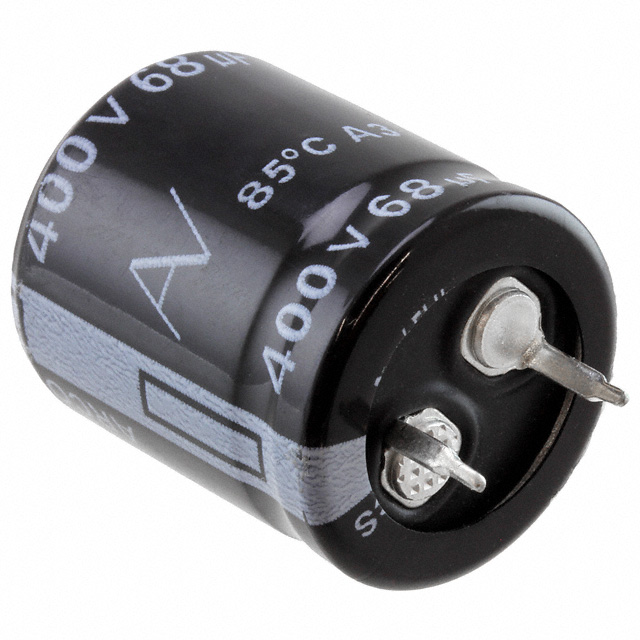

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 68 F, 20%, 400 V, 22 MM, 0.852 OHM ROHS COMPLIANT: YES
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Package / Case | Tolerance | Ripple Current @ High Frequency | Capacitance | Mounting Type | Polarization | Lifetime @ Temp. | Applications | Lead Spacing | Lead Spacing | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.063 in | 27 mm | 0.866 " | 22 mm | 500 mA | 105 ░C | -25 °C | 400 V | Radial Can - Snap-In | 20 % | 725 mA | 68 µF | Through Hole | Polar | 2000 Hrs | General Purpose | 0.394 in | 10 mm | 852 mOhm |
