325-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Termination Rows	Material - Insulation	Number of Rows	Number of Positions/Bay/Row	Card Type	Color	Contact Finish	Read Out	Contact Type	Mounting Type	Gender	Card Thickness	Card Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions [custom]	Pitch	Pitch	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness	Contact Finish Thickness

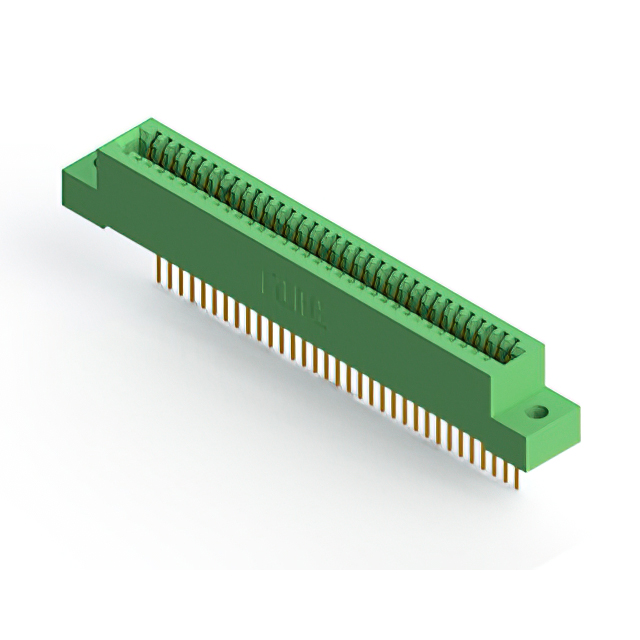

EDAC Inc. 325-033-540-109	1	Diallyl Phthalate (DAP)	1	33	Non Specified - Single Edge	Green	Gold	Single	Cantilever	Through Hole	Female	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	33	0.1 "	2.54 mm	Wire Wrap	-65 ░C	125 °C	Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 325-033-520-101	1	Diallyl Phthalate (DAP)	1	33	Non Specified - Single Edge	Green	Gold	Single	Cantilever	Through Hole	Female	3.18 mm	0.125 in				33	0.1 "	2.54 mm	Solder	-65 ░C	125 °C	Copper Alloy	0.25 Ám	10 Áin

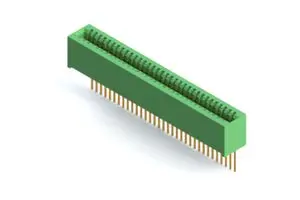

EDAC Inc. 325-033-540-101	1	Diallyl Phthalate (DAP)	1	33	Non Specified - Single Edge	Green	Gold	Single	Cantilever	Through Hole	Female	3.18 mm	0.125 in				33	0.1 "	2.54 mm	Wire Wrap	-65 ░C	125 °C	Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 325-033-520-108	1	Diallyl Phthalate (DAP)	1	33	Non Specified - Single Edge	Green	Gold	Single	Cantilever	Through Hole	Female	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening			33	0.1 "	2.54 mm	Solder	-65 ░C	125 °C	Copper Alloy	0.25 Ám	10 Áin

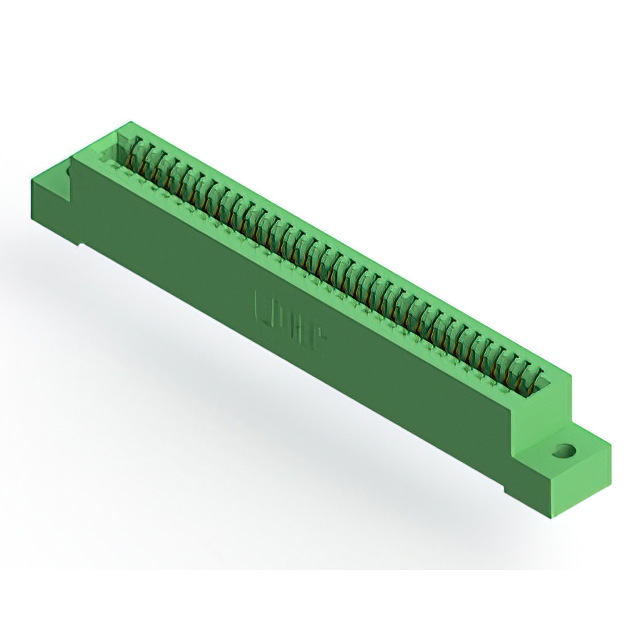

EDAC Inc. 325-033-520-109	1	Diallyl Phthalate (DAP)	1	33	Non Specified - Single Edge	Green	Gold	Single	Cantilever	Through Hole	Female	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	33	0.1 "	2.54 mm	Solder	-65 ░C	125 °C	Copper Alloy	0.25 Ám	10 Áin
