WTB9 Series
Manufacturer: SICK, Inc.
Beta
⌘K

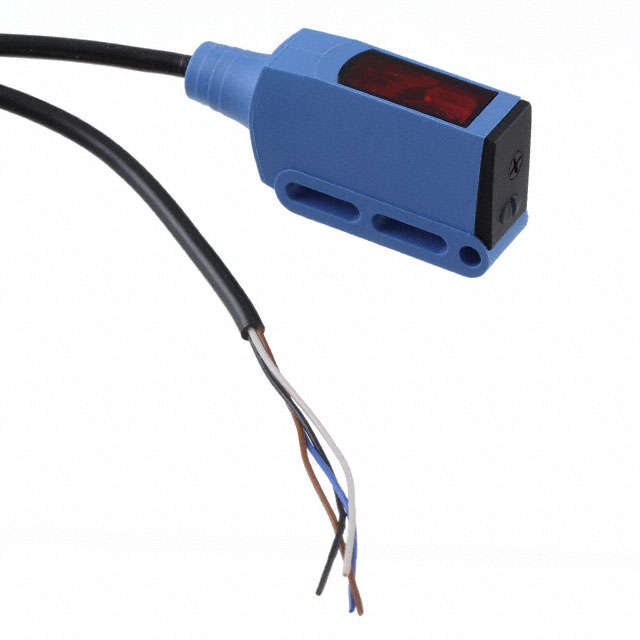

SENSOR PROXIMITY 500MM PNP
| Part | Output Configuration | Operating Temperature (Max) | Operating Temperature (Min) | Sensing Method | Response Time | Sensing Distance Minimum | Sensing Distance Maximum | Connection Method | Light Source Wavelength (Infrared) | Light Source | Ingress Protection | Adjustment Turns | Adjustment Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Cable Length | Light Source Wavelength (Red) | Sensing Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 500 µs | 0.787 " | 19.685 " | Cable with Connector | 880 nm | Infrared | IP66 IP67 IP69K | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 4.724 in | ||
SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 333 µs | 0.787 " | 13.78 " | Cable | Red | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 196.85 in | 650 nm | ||
 SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 333 µs | 0.787 " | 13.78 " | Cable | Red | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 78.74 in | 650 nm | ||
 SICK, Inc. | Light-ON - Selectable NPN - Dark-ON | 60 °C | -40 °C | 333 µs | 0.787 " | 7.874 " | Cable | Red LED | IP66 IP67 IP69K | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | |||||
SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 333 µs | 0.787 " | 13.78 " | Cable with Connector | Red | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 4.724 in | 650 nm | ||
SICK, Inc. | NPN | 60 °C | -40 °C | Proximity | 333 µs | 0.787 " | 13.78 " | Cable with Connector | Red | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 4.724 in | 650 nm | ||
SICK, Inc. | Light-ON NPN - Dark-ON | 50 °C | -10 °C | Proximity | 200 µs | Cable with Connector | Red | IP67 IP69K | Adjustable Potentiometer | 10 VDC | 30 VDC | 4.724 in | 650 nm | 0.394 " | ||||
 SICK, Inc. | Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable | 60 °C | -40 °C | 333 µs | 0.787 " | 7.874 " | 4POS Connector M12 | Red LED | IP66 IP67 IP69K | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | |||||
SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 500 µs | 0.787 " | 19.685 " | Cable | 880 nm | Infrared | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC | 78.74 in | ||
 SICK, Inc. | PNP | 60 °C | -40 °C | Proximity | 500 µs | 0.787 " | 19.685 " | Connector M8 | 880 nm | Infrared | IP66 | 5 turn | Adjustable Potentiometer | 10 VDC | 30 VDC |
