8725 Series
Manufacturer: Belden Inc.
Beta
⌘K

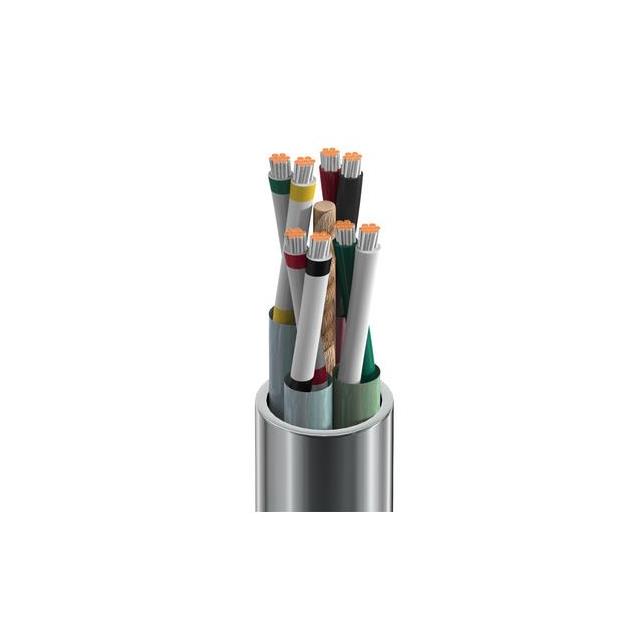

4 SH PR #20 PP PVC
| Part | Shield Material | Shield Coverage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Shield Type | Jacket Color | Usage | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Wire Gauge | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | Drain Wire | 0.03 in | 0.762 mm | Multi-Pair | 304.8 m | 1000 ft | 28 AWG | 7 | 8 | Foil | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 400 V | 0.336 in | 8.53 mm | Polypropylene (PP) | 20 AWG | Copper Tinned | -40 C | 105 ░C |
Belden Inc. | Aluminum Polyester | 100 % | Drain Wire | 0.03 in | 0.762 mm | Multi-Pair | 152.4 m | 500 ft | 28 AWG | 7 | 8 | Foil | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 400 V | 0.336 in | 8.53 mm | Polypropylene (PP) | 20 AWG | Copper Tinned | -40 C | 105 ░C |
