337-074 Series
Manufacturer: EDAC Inc.
Beta
⌘K

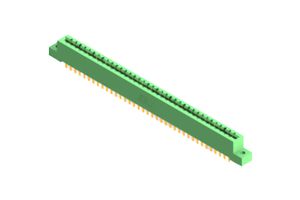

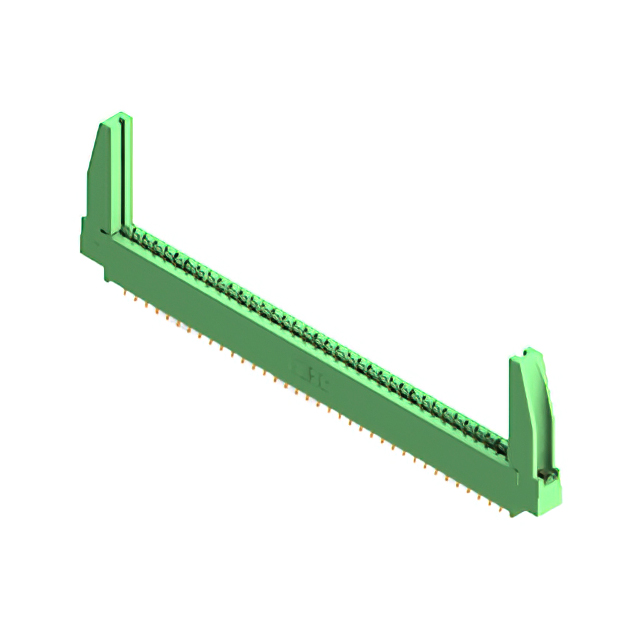

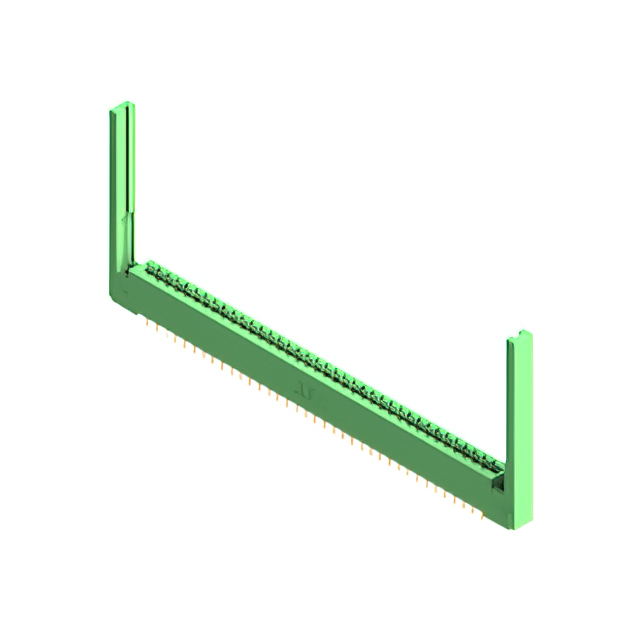

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Pitch | Pitch | Card Type | Flange Feature | Color | Contact Type | Number of Positions/Bay/Row | Mounting Type | Termination | Number of Positions | Gender | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | 37 | Through Hole | Wire Wrap | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | Cantilever | 37 | Through Hole | Wire Wrap | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | 37 | Through Hole | Wire Wrap | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | 37 | Through Hole | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 37 | Board Edge Straddle Mount | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | Card Extender Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | 37 | Through Hole | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | Cantilever | 37 | Board Edge Straddle Mount | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | Card Extender Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 37 | Through Hole | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | Cantilever | 37 | Board Edge Straddle Mount | Solder | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | 3.96 mm | 0.156 " | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 37 | Through Hole | Wire Wrap | 74 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | 0.25 Ám | 10 Áin | Gold | Card Guides |
