T110B Series

Manufacturer: KEMET

Catalog

4.70UF 50.0V ROHS COMPLIANT: NO

Part	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Tolerance	Package / Case	Manufacturer Size Code	Features	Grade	Voltage - Rated	Qualification	Type	ESR (Equivalent Series Resistance)	Size / Dimension [z]	Size / Dimension [z]
KEMET T110B475J050AS	Through Hole	4.7 µF	-55 C	125 °C	4.7 mm	0.185 in	4.7 mm	0.185 in	5 %	Axial	B	General Purpose	Military	50 VDC	MIL-PRF-39003/1	Hermetically Sealed	2.5 Ohm
KEMET T110B126K020AS	Through Hole	12 µF	-55 C	125 °C	4.7 mm	0.185 in	4.7 mm	0.185 in	10 %	Axial	B	General Purpose	Military	20 V	MIL-PRF-39003/1	Hermetically Sealed	2.9 Ohm

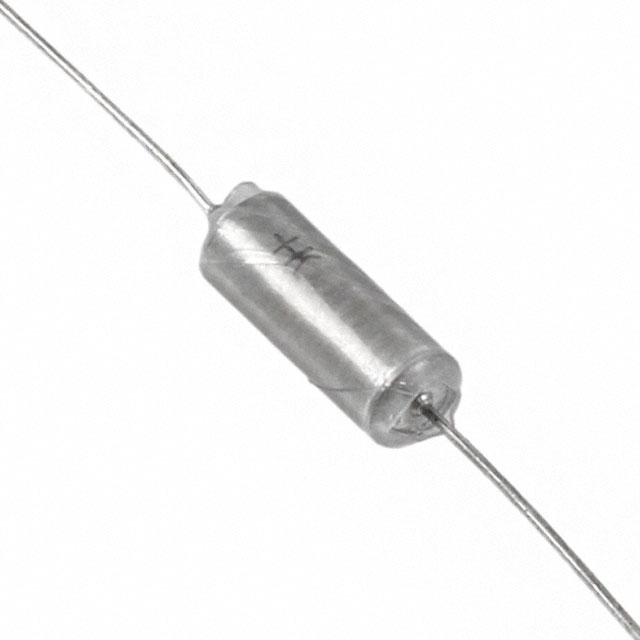

KEMET T110B396K010AS	Through Hole	39 µF	-55 C	125 °C	4.7 mm	0.185 in			10 %	Axial	B	General Purpose		10 V		Hermetically Sealed	2.1 Ohm	0.474 in	12.04 mm
KEMET T110B226M015AS	Through Hole	22 µF	-55 C	125 °C	4.7 mm	0.185 in			20 %	Axial	B	General Purpose	Military	15 V	MIL-PRF-39003/1	Hermetically Sealed	2000 mOhm	0.474 in	12.04 mm
KEMET T110B225M100AS	Through Hole	2.2 µF	-55 C	125 °C	4.7 mm	0.185 in	4.7 mm	0.185 in	20 %	Axial	B	General Purpose	Military	100 V	MIL-PRF-39003/1	Hermetically Sealed	3 Ohm
KEMET T110B335K035AT	Through Hole	3.3 µF	-55 C	125 °C	4.7 mm	0.185 in			10 %	Axial	B	General Purpose		35 V		Hermetically Sealed	4 Ohm	0.474 in	12.04 mm
KEMET T110B685K035AT	Through Hole	6.8 µF	-55 C	125 °C	4.7 mm	0.185 in			10 %	Axial	B	General Purpose		35 V		Hermetically Sealed	2.5 Ohm	0.474 in	12.04 mm
KEMET T110B475M035AT	Through Hole	4.7 µF	-55 C	125 °C	4.7 mm	0.185 in	4.7 mm	0.185 in	20 %	Axial	B	General Purpose	Military	35 V	MIL-PRF-39003/1	Hermetically Sealed	3 Ohm

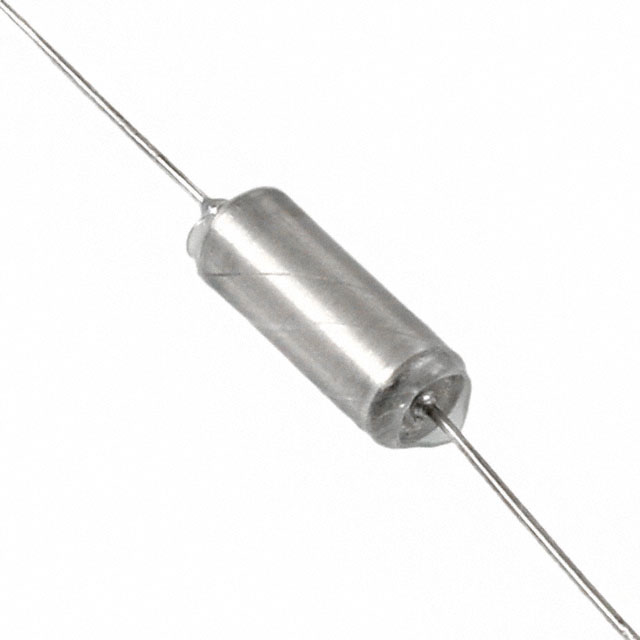

KEMET T110B475K035AS	Through Hole	4.7 µF	-55 C	125 °C	4.7 mm	0.185 in			10 %	Axial	B	General Purpose		35 V		Hermetically Sealed	3 Ohm	0.474 in	12.04 mm

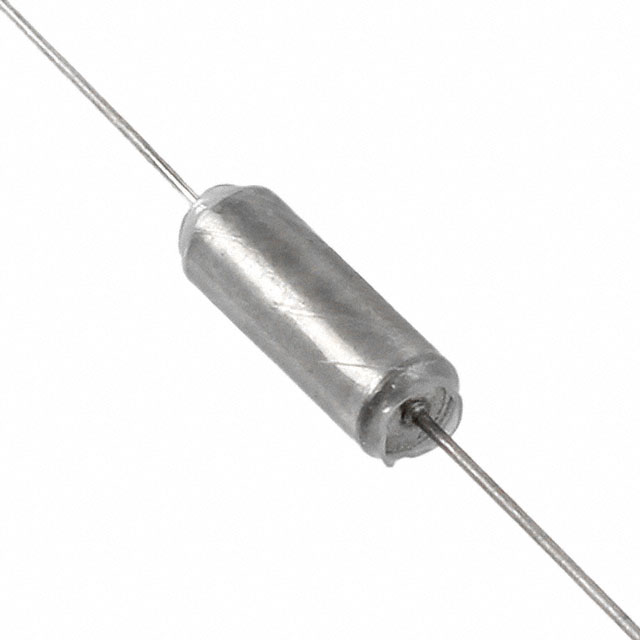

KEMET T110B156K020AS	Through Hole	15 µF	-55 C	125 °C	4.7 mm	0.185 in			10 %	Axial	B	General Purpose		20 V		Hermetically Sealed	2.3 Ohm	0.474 in	12.04 mm
