OSTVF06 Series

Catalog

TERM BLOCK HDR 6POS VERT 5MM

Part	Number of Levels	Contact Material	Positions Per Level	Mounting Type	Insulation Height	Insulation Height	Material Flammability Rating	Termination Style	Pitch [x]	Pitch [x]	Voltage - UL	Header Orientation	Number of Positions	Housing Material	Color	Type	Contact Tail Length	Contact Tail Length	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Mating Finish	Current - UL
On Shore Technology Inc. OSTVF067250	2	Brass	3	Through Hole	0.866 in	22 mm	UL94 V-0	Solder	5 mm	0.197 in	300 V	Vertical	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.154 "	3.9 mm	Mating Flange	-30 ░C	105 ░C
On Shore Technology Inc. OSTVF065251	2	Brass	3	Through Hole	0.933 in	23.7 mm	UL94 V-0	Solder	5.08 mm	0.2 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	Mating Flange	-30 ░C	105 ░C
On Shore Technology Inc. OSTVF067150	2	Brass	3	Through Hole	0.866 in	22 mm	UL94 V-0	Solder	5 mm	0.197 in	300 V	Vertical	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.154 "	3.9 mm		-30 ░C	105 ░C
On Shore Technology Inc. OSTVF067151	2	Brass	3	Through Hole			UL94 V-0	Solder	5 mm	0.197 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm		-30 ░C	105 ░C	23.6 mm	0.929 in
On Shore Technology Inc. OSTVF067051	2	Brass	3	Through Hole			UL94 V-0	Solder	5 mm	0.197 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm	Interlocking (Side)	-30 ░C	105 ░C	23.6 mm	0.929 in
On Shore Technology Inc. OSTVF065150	2	Copper	3	Through Hole	0.866 in	22 mm	UL94 V-0	Solder	5.08 mm	0.2 in	300 V	Vertical	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.154 "	3.9 mm		-40 °C	115 °C			Tin	10 A
On Shore Technology Inc. OSTVF065151	2	Brass	3	Through Hole	0.933 in	23.7 mm	UL94 V-0	Solder	5.08 mm	0.2 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm		-30 ░C	105 ░C
On Shore Technology Inc. OSTVF065250	2	Brass	3	Through Hole	0.866 in	22 mm	UL94 V-0	Solder	5.08 mm	0.2 in	300 V	Vertical	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.154 "	3.9 mm	Mating Flange	-30 ░C	105 ░C
On Shore Technology Inc. OSTVF067251	2	Brass	3	Through Hole			UL94 V-0	Solder	5 mm	0.197 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (4 Side)	0.154 "	3.9 mm	Mating Flange	-30 ░C	105 ░C	23.6 mm	0.929 in

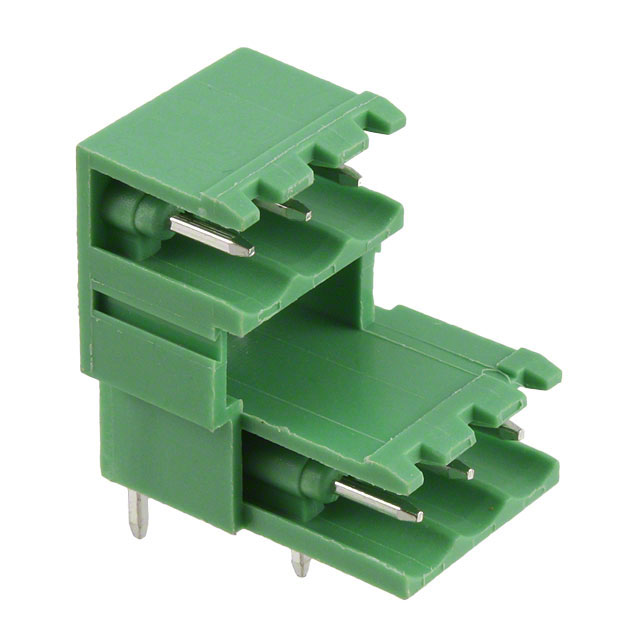

On Shore Technology Inc. OSTVF065051	2	Copper	3	Through Hole	0.933 in	23.7 mm	UL94 V-0	Solder	5.08 mm	0.2 in	300 V	90° Right Angle	6	Thermoplastic	Green	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm	Interlocking (Side)	-40 °C	115 °C			Tin	10 A
