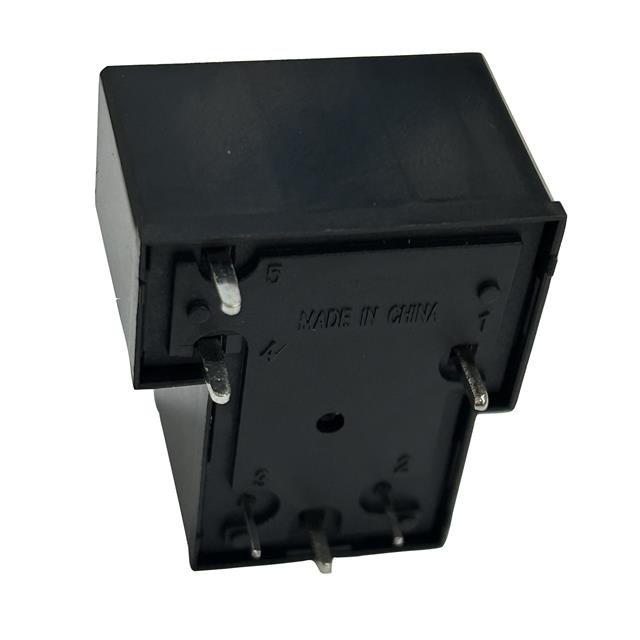

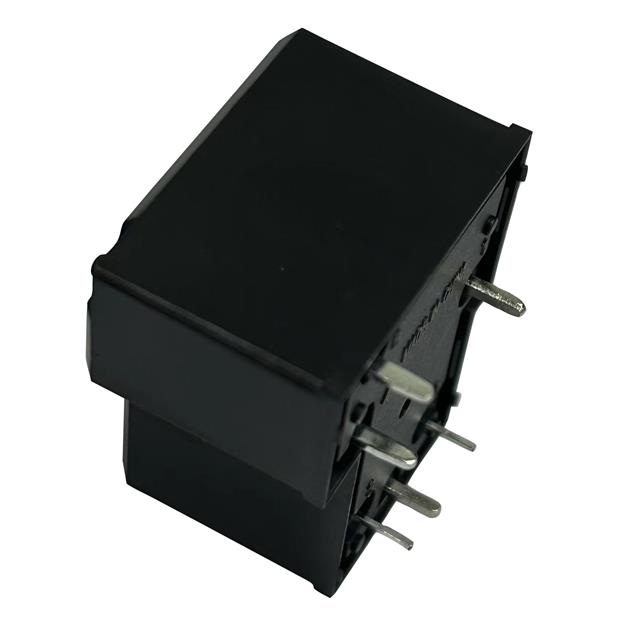

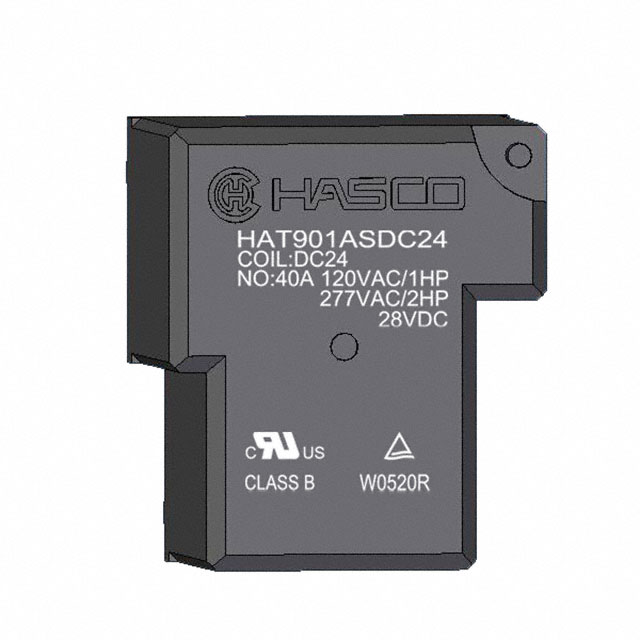

HAT901 Series
Manufacturer: Hasco Relays
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY SPST 30A 24V
| Part | Switching Voltage AC (Max) | Coil Insulation | Must Release Voltage | Contact Material | Contact Rating (Current) | Release Time | Operate Time | Coil Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Form A Count | Contact Form | Mounting Type | Must Operate Voltage | Coil Current | Termination Style | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hasco Relays | 277 VAC | Class B | 2.4 V | Silver Alloy | 30 A | 10 ms | 15 ms | 24 VDC | -40 °C | 85 °C | 1 | SPST-NO | Through Hole | 18 VDC | 36.4 mA | PC Pin | Non Latching |
 Hasco Relays | 277 VAC | Class B | 2.4 V | Silver Alloy | 40 A | 10 ms | 15 ms | 24 VDC | -40 °C | 85 °C | 1 C Form SPDT | Through Hole | 18 VDC | 36.4 mA | PC Pin | Non Latching |
