R18516 Series

Catalog

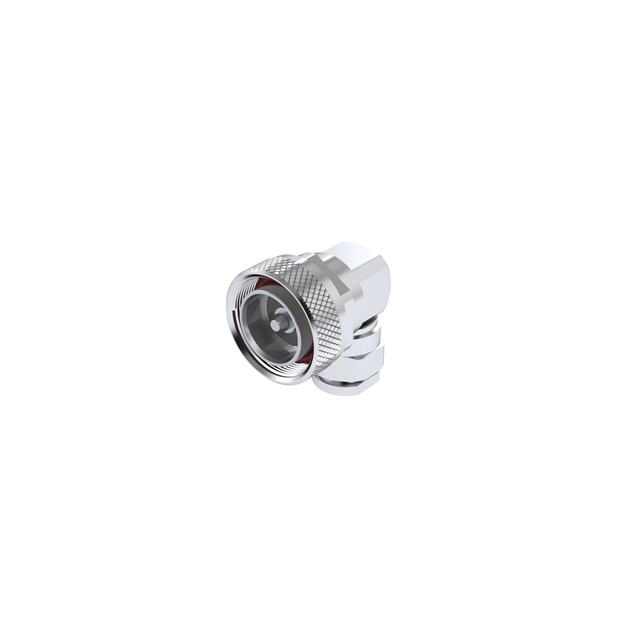

7-16 / RIGHT ANGLE PLUG CLAMP TY

Part	Body Finish	Dielectric Material	Mating Cycles	Voltage Rating	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Connector Type	Center Contact Material	Cable Group	Fastening Type	Connector Style	Ingress Protection	Shield Termination	Contact Termination	Mounting Type	Housing Color	Impedance	Number of Ports	Frequency - Max [Max]
Radiall USA, Inc. R185160000	White Bronze	Polytetrafluoroethylene (PTFE)	500	1400 V	Brass	155 C	-55 C	Silver	Plug Male Pin	Brass	214 225 RG-213	Threaded	7/16 DIN	IP67 - Dust Tight Waterproof	Clamp	Solder	Free Hanging (In-Line) Right Angle	Silver	50 Ohms	1	7.5 GHz
Radiall USA, Inc. R185160000W	White Bronze	Polytetrafluoroethylene (PTFE)	500	1400 V	Brass	155 C	-55 C	Silver	Plug Male Pin	Brass	214 225 RG-213	Threaded	7/16 DIN	IP67 - Dust Tight Waterproof	Clamp	Solder	Free Hanging (In-Line) Right Angle	Silver	50 Ohms	1	7.5 GHz
