ERN.00.250 Series
Manufacturer: LEMO
Beta
⌘K
CONN NIMCAMA JCK STR 50OHM SOLDR
| Part | Center Contact Plating | Voltage Rating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Dielectric Material | Mating Cycles | Contact Termination | Number of Ports | Connector Style | Housing Color | Mounting Type | Fastening Type | Connector Type | Ingress Protection | Center Contact Material | Impedance | Mounting Feature | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

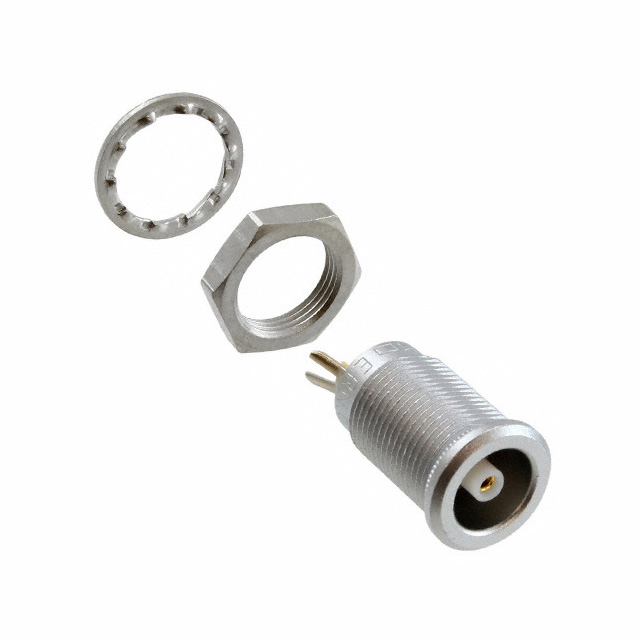

 LEMO | Gold | 700 VDC | 1 Connector 1 Lockwasher 1 Nut | -55 C | 260 °C | Brass | Chrome | Polytetrafluoroethylene (PTFE) | 5000 | Solder Cup | 1 | NIM-CAMAC CD/N 549 | Silver | Panel Mount | Push-Pull | Female Socket Jack | IP50 - Dust Protected | Bronze | 50 Ohms | Bulkhead - Rear Side Nut | Solder |

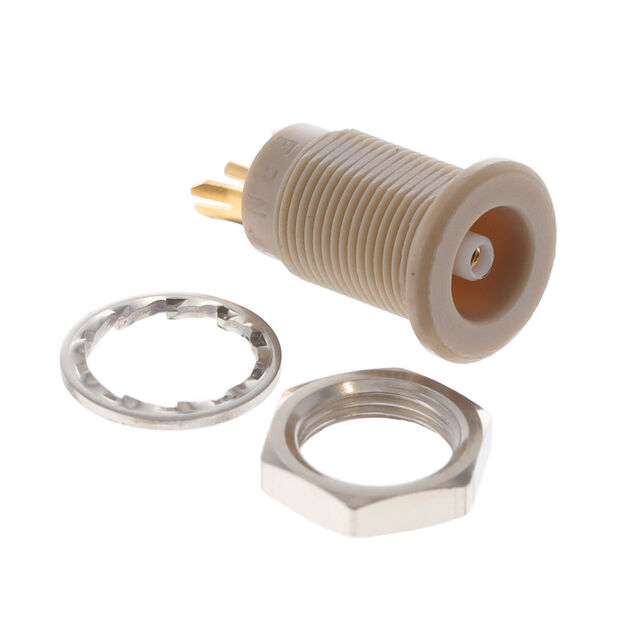

 LEMO | Gold | 700 VDC | 1 Connector 1 Lockwasher 1 Nut | -55 C | 250 °C | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE) | 5000 | Solder Cup | 1 | NIM-CAMAC CD/N 549 | Natural | Panel Mount | Push-Pull | Receptacle Female Socket | IP50 - Dust Protected | Bronze | 50 Ohms | Bulkhead - Rear Side Nut | Solder | |
LEMO | Gold | 700 VDC | 1 Connector 1 Lockwasher 1 Nut | -55 C | 260 °C | Brass | Nickel | Polytetrafluoroethylene (PTFE) | 5000 | Solder Cup | 1 | NIM-CAMAC CD/N 549 | Silver | Panel Mount | Push-Pull | Receptacle Female Socket | IP50 - Dust Protected | Bronze | 50 Ohms | Bulkhead - Rear Side Nut | Solder |
