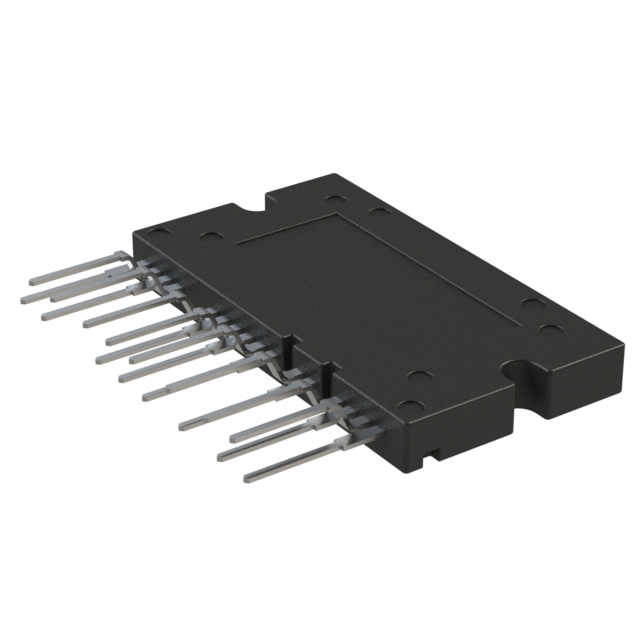

NXV65HR51DZ Series
H-Bridge in APM16 Series for LLC and Phase-shifted DC-DC Converter
Manufacturer: ON Semiconductor
Catalog
H-Bridge in APM16 Series for LLC and Phase-shifted DC-DC Converter
Key Features
• SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV−PHEV
• Compact Design for Low Total Module Resistance
• Module Serialization for Full Traceability
• Lead Free, RoHS and UL94V−0 Compliant
• Automotive Qualified per AEC Q101 and AQG324 Guidelines
Description
AI
OnBoard Charger H-Bridge in APM16 Series for LLC and Phase-shifted DC-DC Converter.51mOhm SuperFET3 H-Bridge on Al²O³ DBC substrate with 5kV isolation in a compact APM16 transfer molded module
