KX14-20K Series

Catalog

CONN RCPT 20POS SMD GOLD

Part	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Pitch	Pitch	Mated Stacking Heights
JAE Electronics KX14-20K8D-E650E	20	0.376 in	9.55 mm	Gold	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	2	0.8 mm	0.031 in

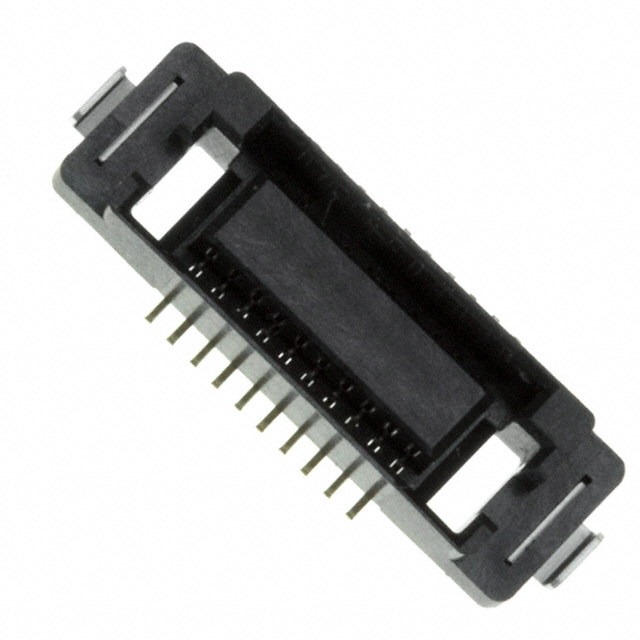

JAE Electronics KX14-20K2DE	20	0.14 in	3.55 mm	Gold	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	2	0.8 mm	0.031 in	4 mm 5 mm 6 mm
JAE Electronics KX14-20K2D-E1000E	20	0.14 in	3.55 mm	Gold	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	2	0.8 mm	0.031 in	4 mm 5 mm 6 mm

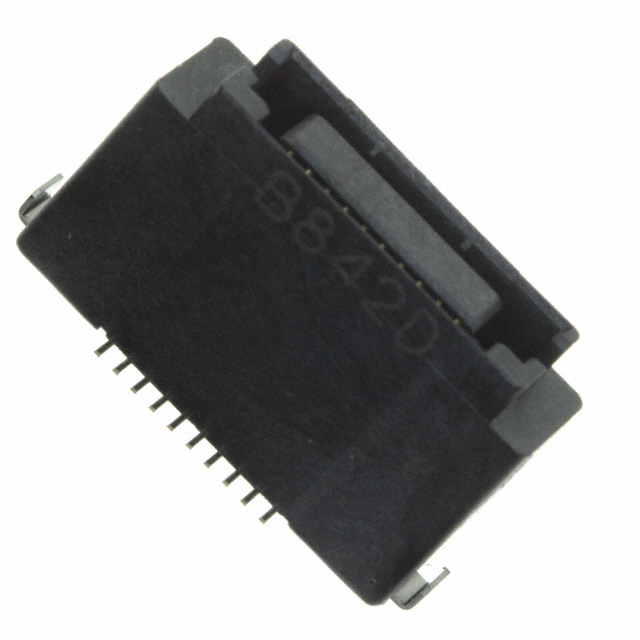

JAE Electronics KX14-20K8DE	20	0.376 in	9.55 mm	Gold	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	2	0.8 mm	0.031 in

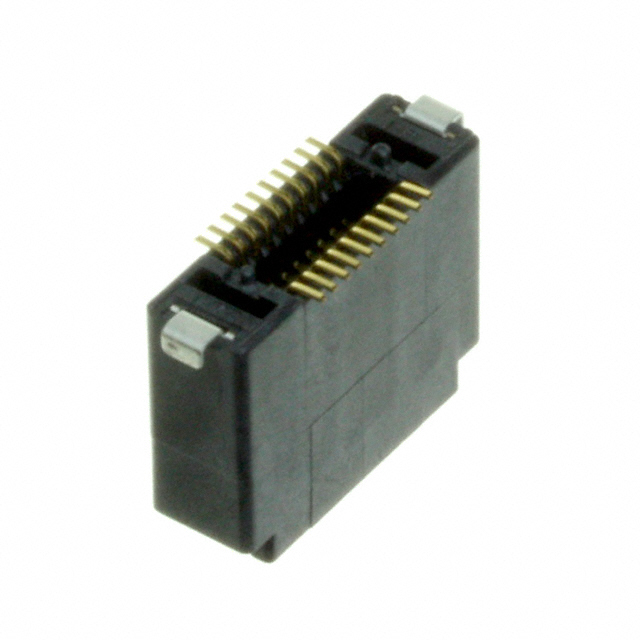

JAE Electronics KX14-20K11DE	20			Gold	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	2	0.8 mm	0.031 in	13 mm 14 mm 15 mm
