FFC3B07 Series

Manufacturer: GCT

Catalog

CONN FFC FPC BOTTOM 6POS 1MM R/A

Part	Actuator Color	Housing Color	Mating Cycles	Current Rating (Amps)	Features	Mounting Type	Housing Material	Voltage Rating	Connector/Contact Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions	FFC, FCB Thickness	Actuator Material	Contact Finish	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Material Flammability Rating	Locking Feature	Contact Material	Cable End Type

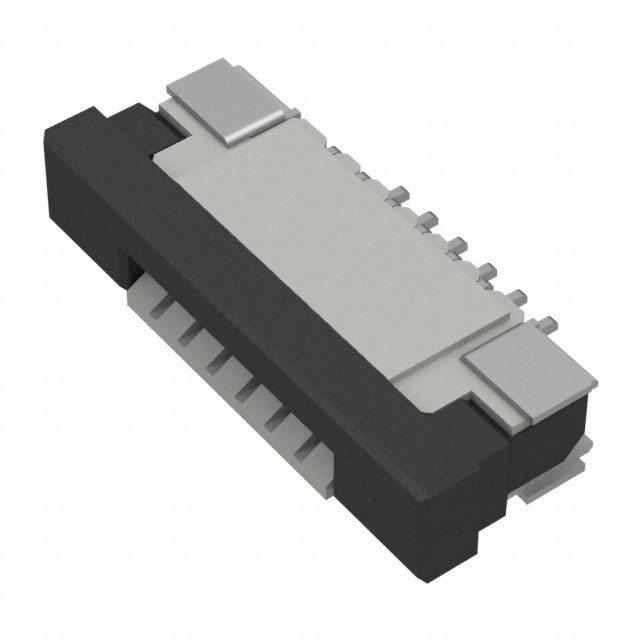

GCT FFC3B07-06-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	6	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

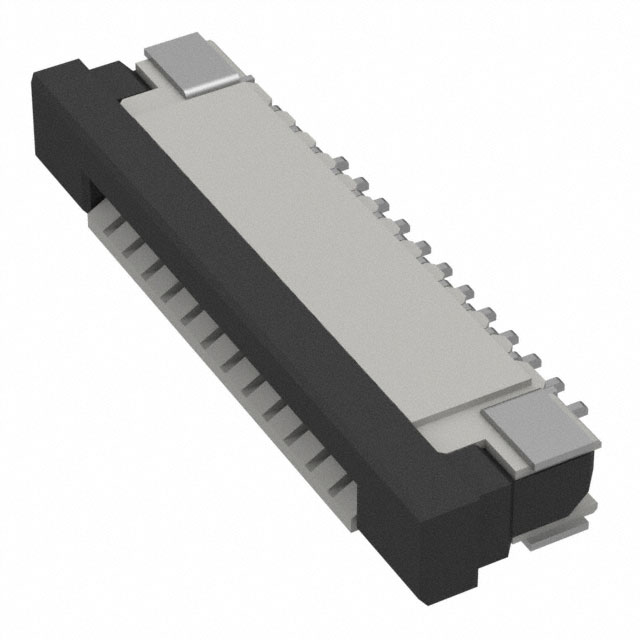

GCT FFC3B07-12-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	12	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

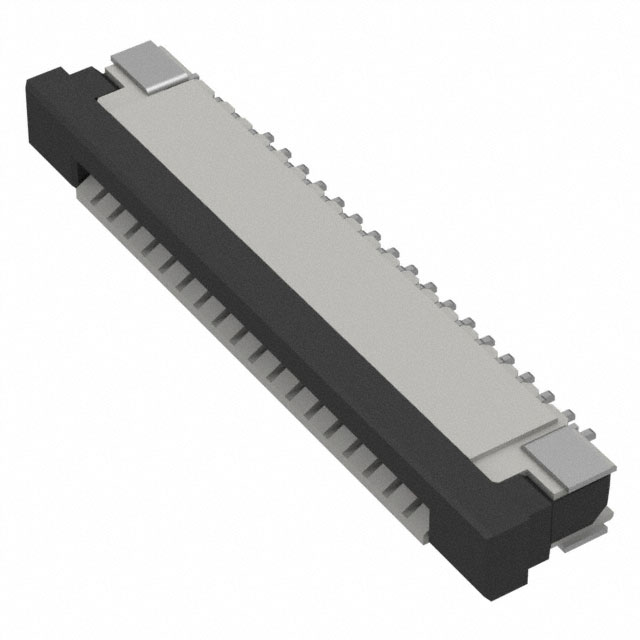

GCT FFC3B07-18-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	18	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

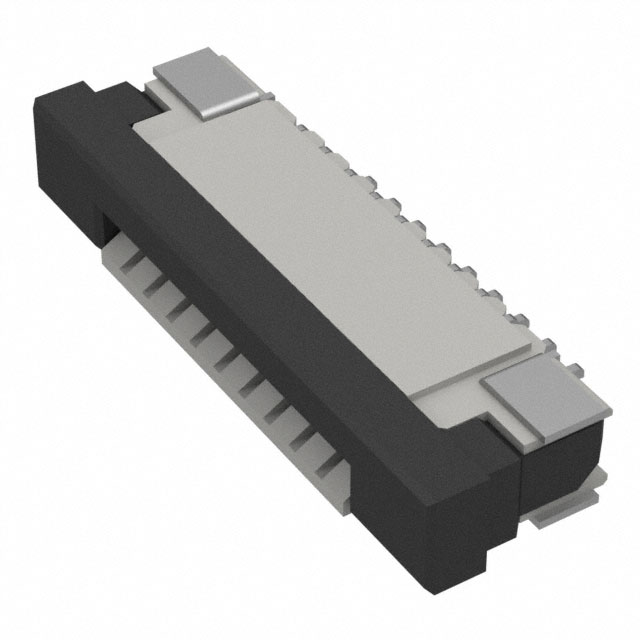

GCT FFC3B07-09-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	9	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

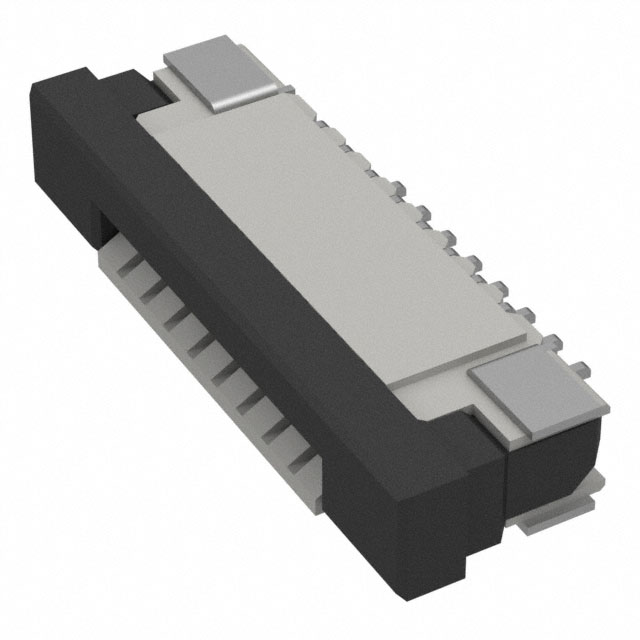

GCT FFC3B07-08-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	8	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered
GCT FFC3B07-04-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	4	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

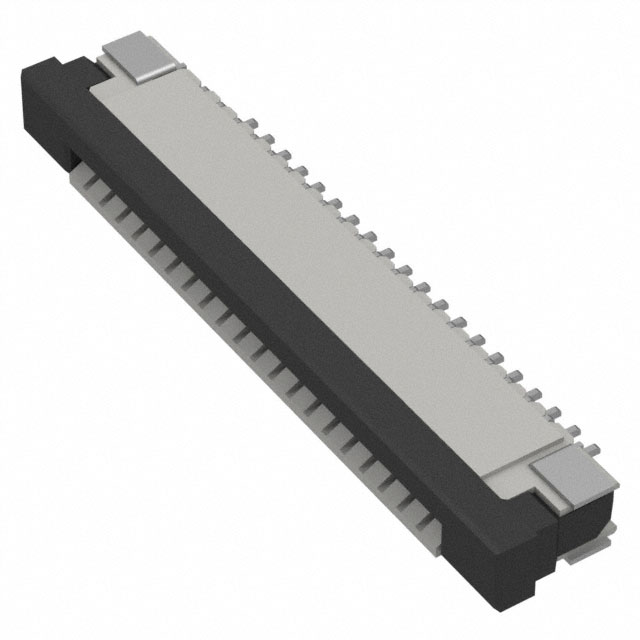

GCT FFC3B07-20-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	20	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

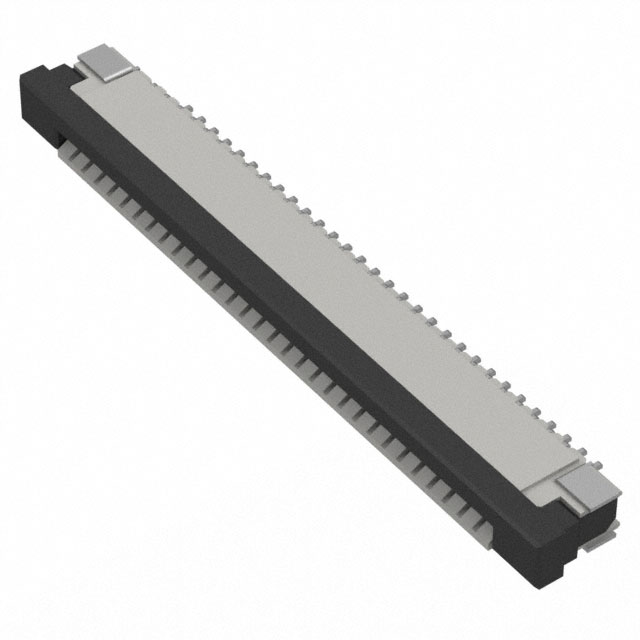

GCT FFC3B07-30-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	30	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

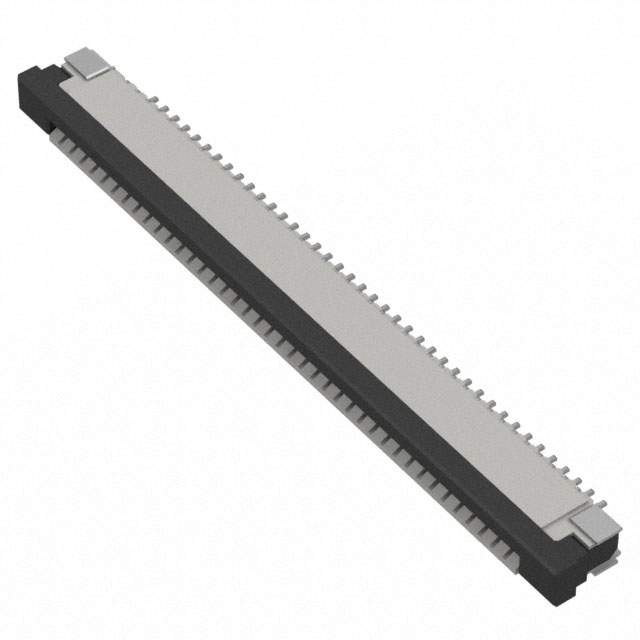

GCT FFC3B07-40-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	40	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered

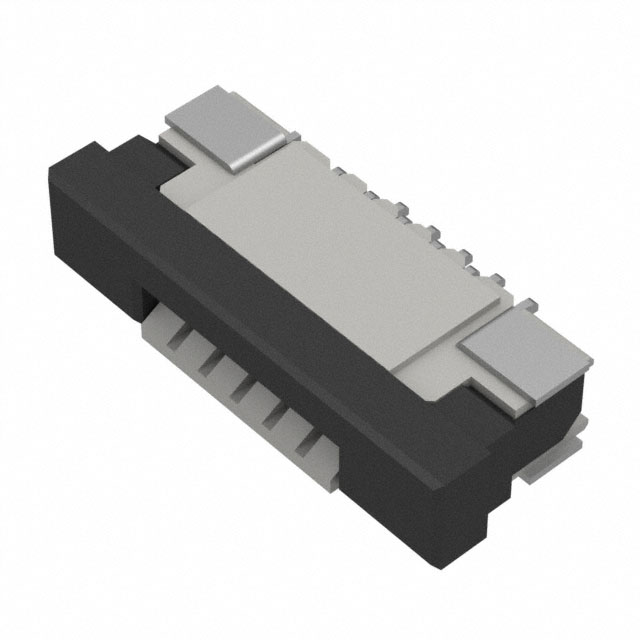

GCT FFC3B07-05-T	Black	Natural	20	400 mA	Solder Retention	Right Angle Surface Mount	Thermoplastic	50 V	Contacts Bottom	1 mm	0.039 in	85 °C	-25 °C	Solder	5	0.3 mm	Thermoplastic	Tin	0.098 in	2.5 mm	FFC FPC	UL94 V-0	Slide Lock	Phosphor Bronze	Tapered
