892-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 39POS 0.100

Part	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Card Type	Color	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish	Read Out	Contact Type	Contact Material	Number of Positions	Termination	Gender	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

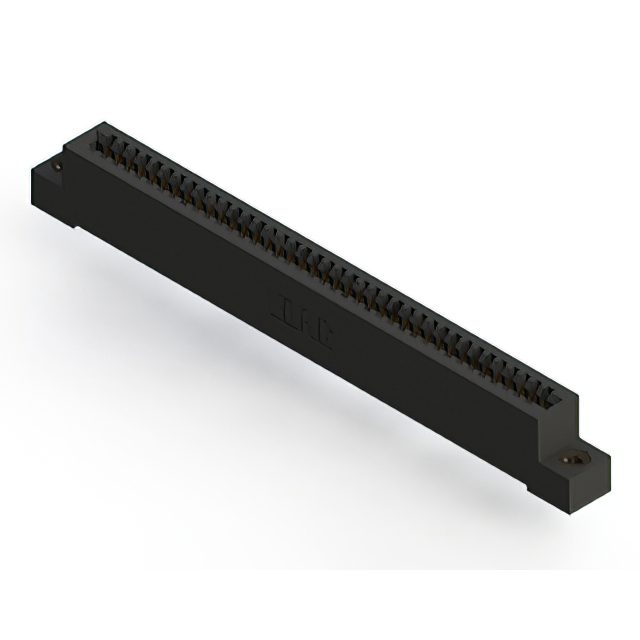

EDAC Inc. 892-039-524-108	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening

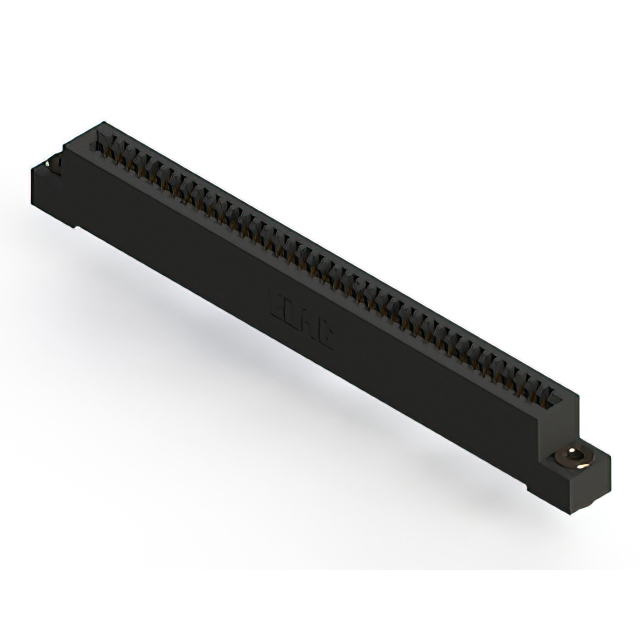

EDAC Inc. 892-039-524-103	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-039-524-104	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

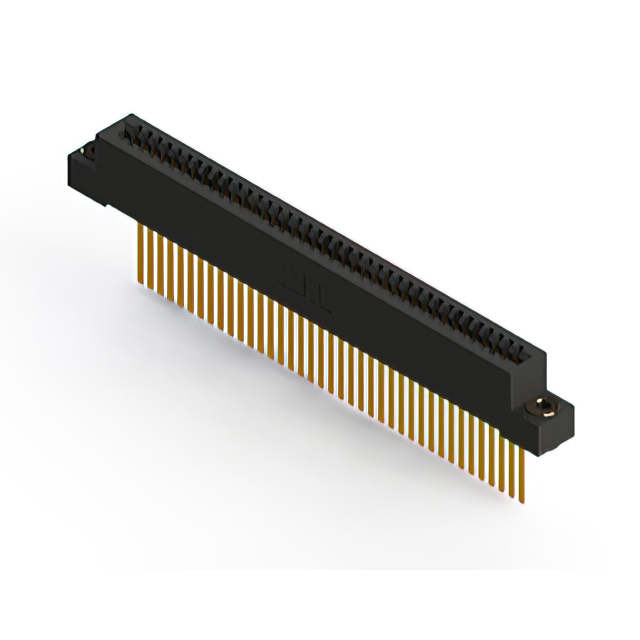

EDAC Inc. 892-039-544-103	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Wire Wrap	Female	1	Through Hole	125 °C	-40 C	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-039-524-102	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-039-523-107	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-039-541-102	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Wire Wrap	Female	1	Through Hole	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-039-540-102	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Wire Wrap	Female	1	Through Hole	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm

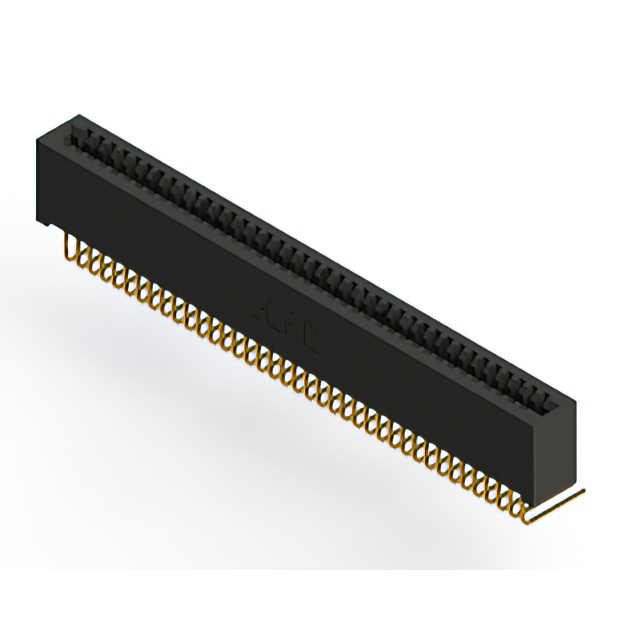

EDAC Inc. 892-039-558-101	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Right Angle Through Hole	125 °C	-40 C
EDAC Inc. 892-039-521-104	1	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Black	39	0.1 "	2.54 mm	Gold	Single	Cantilever	Copper Alloy	39	Solder	Female	1	Through Hole	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
