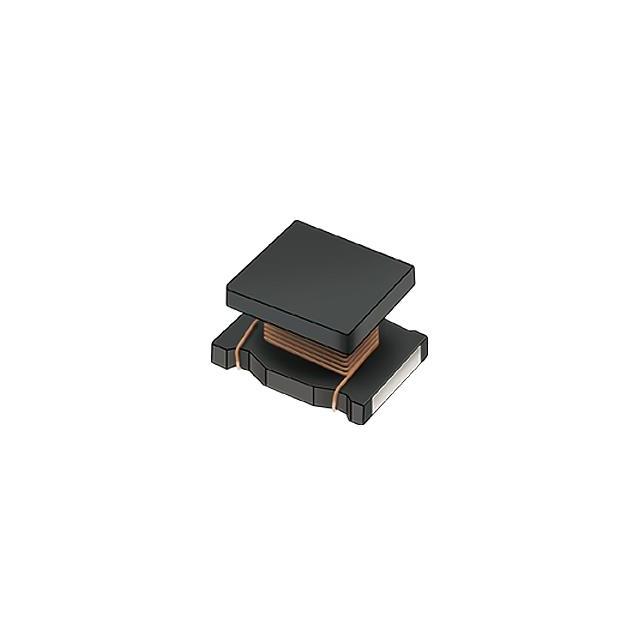

LQH32DZ Series

Catalog

GENERAL PURPOSE INDUCTOR, 220UH, 10%, 1 ELEMENT, FERRITE-CORE, SMD, CHIP, 1210

Part	Type	Material - Core	Current Rating (Amps)	Inductance	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Mounting Type	Supplier Device Package	Ratings	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Tolerance	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. LQH32DZ221K23L
Murata Power Solutions Inc. LQH32DZ100K53L	Drum Core Wirewound	Ferrite	450 mA	10 µH	1210	3225 Metric	0.067 in	1.7 mm	1 MHz	-40 °C	105 ░C	26 MHz	Surface Mount	1210	AEC-Q200	390 mOhm	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	10 %
Murata Power Solutions Inc. LQH32DZ330K53L
Murata Power Solutions Inc. LQH32DZ2R2M53L
Murata Power Solutions Inc. LQH32DZ2R2M23L
Murata Power Solutions Inc. LQH32DZ101K53L	Wirewound	Ferrite	100 mA	100 µH	1210	3225 Metric	0.067 in	1.7 mm	1 MHz	-40 °C	105 ░C	10 MHz	Surface Mount	1210	AEC-Q200		3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	10 %	4.55 Ohm
Murata Power Solutions Inc. LQH32DZ101K23L
Murata Power Solutions Inc. LQH32DZ4R7M53L
Murata Power Solutions Inc. LQH32DZ3R3M53L
Murata Power Solutions Inc. LQH32DZ1R0M23L
