31397 Series

Catalog

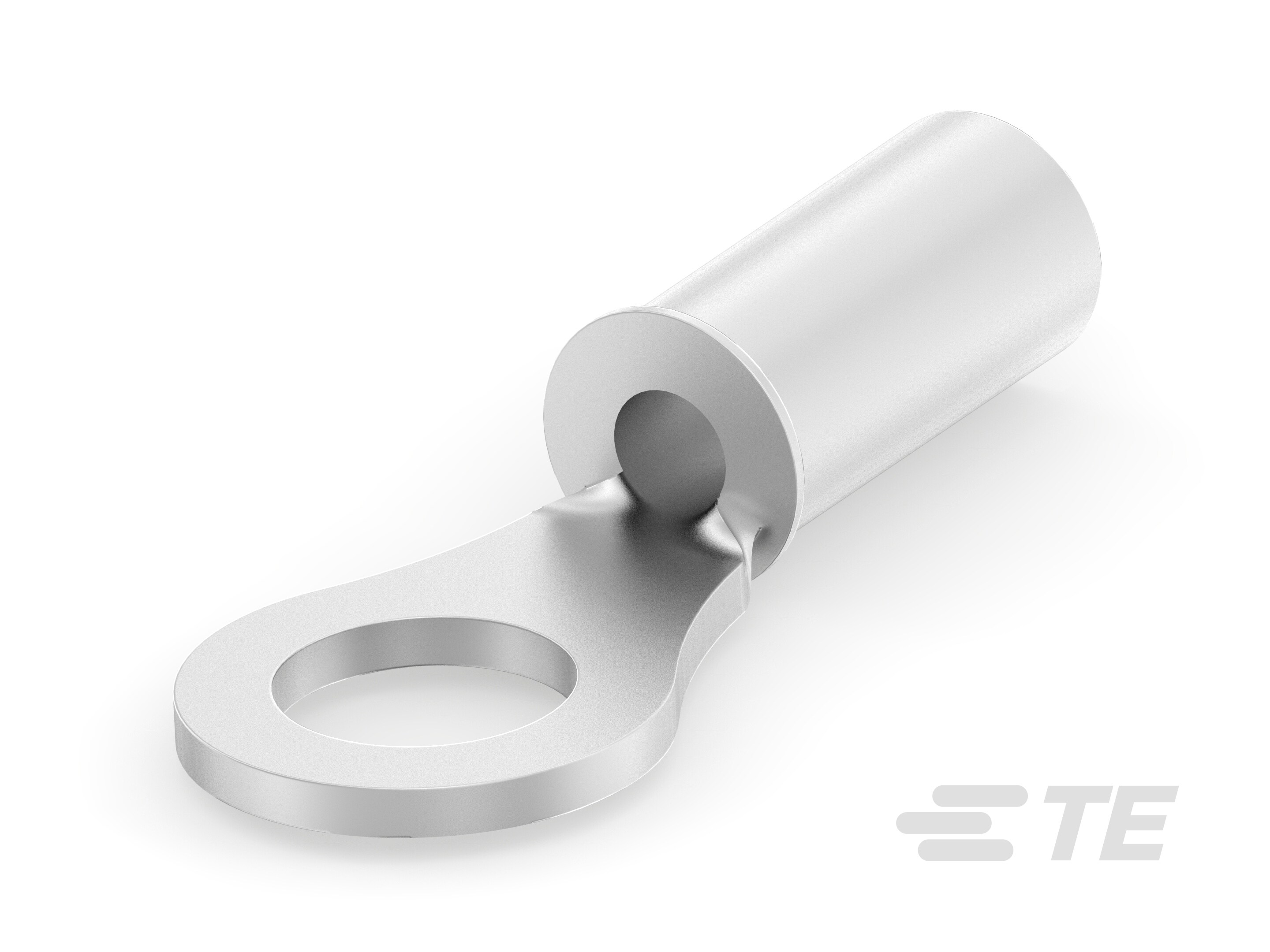

DG R 22-16 COMM 22-18 MIL 8

Part	Length - Overall	Length - Overall [x]	Contact Material	Mounting Type	Contact Finish	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Insulation	Thickness	Thickness	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity Raychem Cable Protection 2-31397-1	18.49 mm	0.728 in	Copper	Free Hanging (In-Line)	Tin	Circular	22 AWG	16 AWG	Crimp	Serrated Termination	7.14 mm	0.281 in	8 Stud	Non-Insulated	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm
TE Connectivity Raychem Cable Protection 31397-1	18.49 mm	0.728 in	Copper	Free Hanging (In-Line)	Tin	Circular	22 AWG	16 AWG	Crimp	Serrated Termination	7.14 mm	0.281 in	8 Stud	Non-Insulated	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm
