UF6030 Series

Catalog

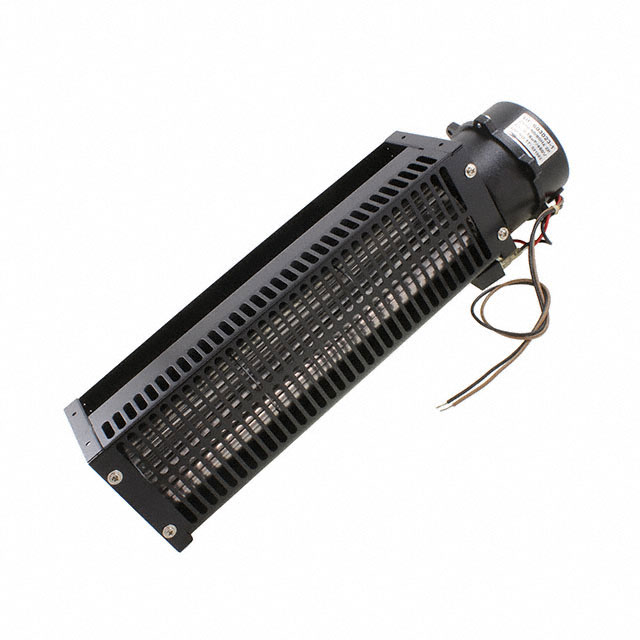

FAN BLWR CF 120VAC 402X98X90MM

Part	Current Rating (Amps)	Material - Blade [custom]	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Bearing Type	RPM	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [x]	Noise	Voltage - Rated	Power (Watts)	Features	Approval Agency	Width [x]	Air Flow	Air Flow	Fan Type	Static Pressure	Static Pressure
Mechatronics Fan Group UF6030CBA12H-L	0.33 A	Aluminum	Steel	-40 C	70 °C	70 °C	-40 °C	2 Wire Leads	Ball	3000 RPM	2 kg	4.3 lbs	90 mm	402 mm	53 dB	120 VAC	37 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	CE TUV	98 mm	195 CFM	5.46 m³/min	Blower Cross Flow	0.3 in H2O	74.7 Pa
Mechatronics Fan Group UF6030CBA23H-L	0.17 A	Aluminum	Steel	-40 C	70 °C	70 °C	-40 °C	2 Wire Leads	Ball	3000 RPM	2 kg	4.3 lbs	90 mm	402 mm	53 dB	230 VAC	37 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	CE TUV	98 mm	195 CFM	5.46 m³/min	Blower Cross Flow	0.3 in H2O	74.7 Pa
