7002-1542 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

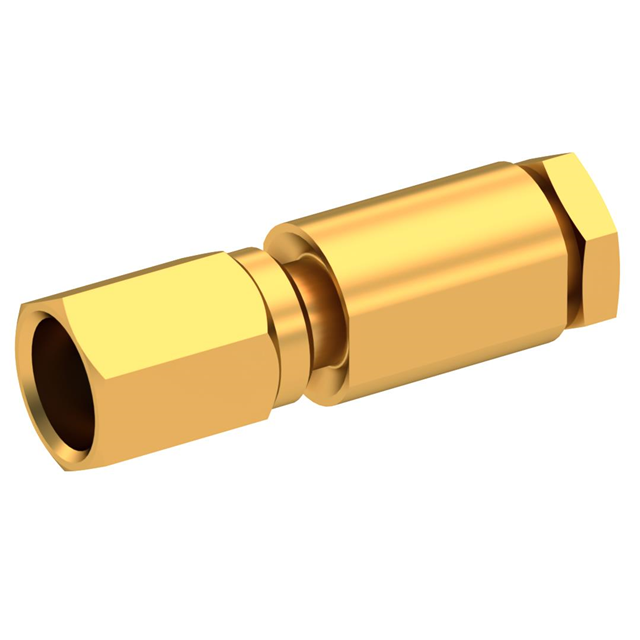

SSMC / STRAIGHT PLUG FEMALE SOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Plating | Body Finish | Voltage Rating | Body Material | Impedance | Frequency - Max [Max] | Contact Termination | Shield Termination | Center Contact Material | Number of Ports | Connector Type | Mounting Type | Cable Group | Connector Style | Fastening Type | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | 250 V | Beryllium Copper | 50 Ohms | 12.4 GHz | Solder | Clamp | Beryllium Copper | 1 | Female Socket Plug | Free Hanging (In-Line) | 0.047 in | SSMC | Threaded | Gold | |
Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | Gold | 250 V | Beryllium Copper | 50 Ohms | 12.4 GHz | Solder | Clamp | Beryllium Copper | 1 | Female Socket Plug | Free Hanging (In-Line) | SSMC | Threaded | Gold | RG-405 (.085" Semi Rigid) |
